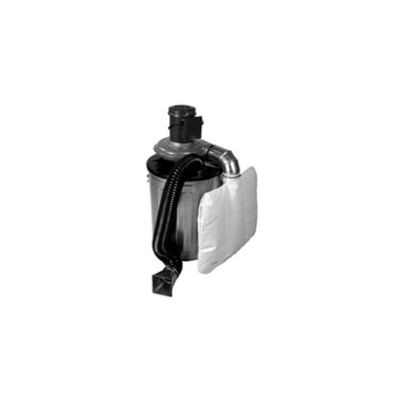

Cincinnati Fan - Model 33S, 50S, 75S, 100S, 150S, 200S and 300S -Portable Dust Collectors

SHARE

Cincinnati Fan manufactures seven sizes of “Dust-Master Portable Dust Collectors”. The two stage filtration design provides much higher filtration efficiencies than single stage collectors.

Most popular related searches
portable dust collector
dust collector
dust bag
woodworking dust collection
dust collection
wood dust
AMCA
blower
explosion modeling
  • Dust Collection for Woodworking
  • Dust Collection for Grinding and Buffing Machine
  • For Portable or Stationary Applications
  • AMCA Type B construction on all models with explosion proof motors.
  • Spark resistant, self-cleaning, cast aluminum, radial wheels are standard.
  • Totally Enclosed motors are standard.
  • Motors are continuous duty, full horsepower rated. NOT duty rated.
  • Heavy-duty 14 gauge steel blower housing is standard on all models.
  • 1/3 - 3/4 horsepower models standard with a 10 micron dust bag. 1-3 horsepower models standard with a 5 micron dust bag. 1 micron bags are available on 1 to 3 horsepower models. All dust bags are 99% efficient at their specified micron filtration levels.
  • All models available with 3 Phase, 230/460 Volt, 60 Cycle motors. 1/3 HP up to 2 HP models also available with 1 Phase, 115/230 Volt, 60 Cycle motors.
  • EXP, 575 Volt and 50 Cycle motors also available on most models.
  • Single Phase, Totally Enclosed motors (up to 1 HP) come with an 8 foot cord, 3 prong grounded plug and a switch pre-wired for 115 Volt, 60 Cycle.
  • Drum lids on 1/3 to 3/4 HP models fit over standard 30 gallon steel garbage cans or 35 gallon steel or fire-resistant, fiber drums having a maximum diameter of 20-1/2”.
  • Drum lids on 1 to 3 HP models fit over standard 55 gallon steel drums or foil lined, fiber drums having a maximum diameter of 24”. Fiber drums must be able to support the unit weight.
  • Drums are not included and plastic drums should never be used for any models.
