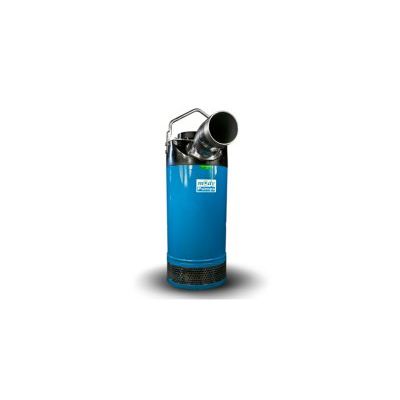

Mody - Model M-800 Series -Portable Electric Submersible Pump

MOTOR

• 2-pole induction continuous rated motor with squirrel cage rotor.
• Stator insulation class `H` (180ºC)
• Speed : 3400 RPM @ 60 Hz, 2800 RPM @ 50 Hz
• Power Rating : 25HP @ 60 Hz, 19kW @ 50Hz Full Load
• Current FLA: 34 Amps @ 460v. 39 Amps @ 400v.
• Max. temperature of the pump liquid : 104°F/40°C
• Max. start/stop per hour : 15
• Star - Delta Starting Optional

POWER SUPPLY

• 3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency
• combination.(208/220/230/380/415/460/575/1000V)

BALL BEARINGS

• Single row deep groove upper bearing. Double angular contact lower bearings.
• The bearings are enclosed with high temperature grease-containing special
• Anti-corrosion additive.

POWER CABLE

• Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor
• flexible cable, 50ft. (15m) length standard. Type SOOW in North America,
• EPR in the Middle East and HO7RN in the EU.

SHAFT SEAL

• Tandem Tungsten Carbide/Tungsten Carbide and Tungsten Carbide/Tungsten
• Carbide Mechanical seals wholly enclosed in a pressure compensated oil chamber.

CORROSION RESISTANT

• Epoxy coated Steel Outer Casing
• Epoxy coated Aluminum Stator Casing
• Nitrile Rubber– Lined Diffuser/Wear plate.
• Shaft: 431 Stainless Steel
• Hardware: 304 Stainless Steel
• Impeller: Nitride Hardened 410SS to 56HRC is Standard.
• pH Range 5 - 8

STRAINER

• 304 Stainless Steel with 1-9/16” (25.5mm) X 3/8” (10mm) {M 802},
• 3/8” (10mm) Round Holes {M 806}

SUBMERGENCE

• Submergence below liquid surface min 5” (127mm) max. 50’ (15m).

WEIGHTS (Approx. without cable)

• M 802: 410lbs. (186Kg)
• M 806: 425lbs. (193Kg)
