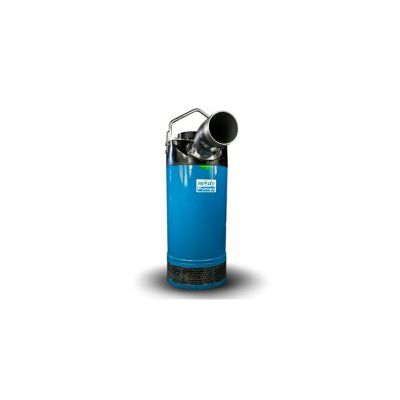

Mody - Model M-500 Series -Portable Electric Submersible Pump

MOTOR

• 2-pole induction continuous rated motor with squirrel cage rotor.
• Stator insulation class `H` (180ºC)
• Speed : 3400 RPM @ 60 Hz, 2800 RPM @ 50 Hz
• Power Rating : 5HP/7.5HP/10HP @ 60 Hz, 3.7kW/5.5kW/7.5kW @ 50Hz Full Load
• Current FLA: 7.1, 11, 14 Amps @ 460v. 8.1, 12.5, 16 @ 400v.
• Max. temperature of the pump liquid : 104°F/40°C
• Max. start/stop per hour : 15

POWER SUPPLY

• 3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency
• combination.(208/220/230/380/415/460/575/1000V)

BALL BEARINGS

• The rotor shaft is carried in two single row, deep groove ball bearings.
• The bearings are enclosed with high temperature grease-containing special
• Anti-corrosion additive.

POWER CABLE

• Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor
• flexible cable, 50ft. (15m) length standard. Type SOOW in North America,
• EPR in the Middle East and HO7RN in the EU. 6 Core with thermal overloads optional.

SHAFT SEAL

• Tandem Tungsten Carbide/Tungsten Carbide and Tungsten Carbide/Tungsten
• Carbide Mechanical seals wholly enclosed in a pressure compensated oil chamber.

CORROSION RESISTANT

• Epoxy coated Aluminum Outer Casing
• Epoxy coated Extruded Aluminum Stator Casing
• Nitrile Rubber– Lined Diffuser/Wear plate. Polyurethane Optional.
• Shaft: 431 Stainless Steel
• Hardware: 304 Stainless Steel
• Impeller: Nitride Hardened 410SS to 56HRC is Standard.
• pH Range 5 - 8

STRAINER

• 304 Stainless Steel with 1” (25mm) X 1/4” (6mm) {M 502/504},
• 1-3/16” (30mm) X 3/8” (9.5mm) {M530/554},
• 1/4” (6mm) Round Holes {M 506/536/556}

SUBMERGENCE

• Submergence below liquid surface min 5” (127mm) max. 50’ (15m).

WEIGHTS (Approx. without cable)

• M 502/504: 110lbs. (50Kg)
• M 506: 115lbs. (52Kg)
• M 530: 130lbs. (59Kg)
• M 536: 135lbs. (61Kg)
• M 554: 142lbs. (64Kg)
• M 556: 147lbs. (67Kg)
