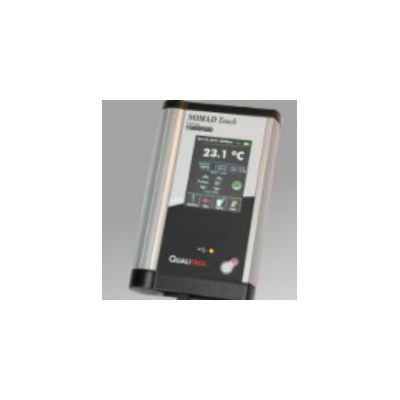

Nomad-Touch - Portable Fiber Optic Thermometer
A portable single-channel fiber optic signal conditioner for temperature measurement in energy, industrial and laboratory applications. The Neoptix NOMAD-Touchoffers impressive versatility. Battery operated for maximum user freedom, this single-channel instrument allows you to freely move from one area to another to measure temperatures at various critical sensing points.
The NOMAD-Touchruns on a rechargeable battery, providing power for at least 5 hours of continuous use. NOMAD-Touchalso comes with a universal USB power supply.
The NOMAD-Touchcomes with a built-in datalogging feature allowing user to save collected data directly in internal memory. The NOMAD-Touchalso feature the SnapLog feature which allows recording of one temperature point with time stamp everytime the SnapLog key is pressed.
The NOMAD-Touchfeatures a large 240 x 320 pixels LCD display with a LED backlight. It provides Celsius or Fahrenheit temperature readings that are well contrasted in any conditions.
The NOMAD-Touchicon-driven user interface is accessible via the tactile display screen. All functions are accessible through the display menu, including internal data logging, instrument setup and configuration, and Expert mode. Datalogging sessions can also be viewed directly on the display.
This multi-purpose instrument comes with a built-in USB interface for remote interfacing. The instrument is a perfect match to Neoptix OptiLink-II™ control PC software. Moreover, all system features are accessible through ASCII commands, facilitating the development of custom routines or proprietary drivers by users.
Part of Neoptix’s complete line of fiber-optic sturdy thermometers, which have been in use for more than 10 years, the NOMAD-Touchis a valuable monitoring tool for a wide range of applications in energy, industrial and research activities, such as hot spot monitoring inside power transformers during manufacturing and heat runs. It has also been used in various high voltage applications and MW/RF heating applications.
Its accuracy and high degree of sensitivity to temperature changes makes it a natural choice for a wide variety of applications. Moreover, the Neoptix field proven sensors are interchangeable and no calibration or inconvenient gage factors are required when changing sensors. The NOMAD-Touchcomes with a complete one-year international warranty and is backed by the Neoptix “48-hours Service” policy.
The NOMAD-Touchis the ideal instrument for checking the operation of probes during transformer manufacturing.
- Operated by a 5V battery rechargeable via USB
- 32MB internal data logging memory
- -80 to 300°C range
- USB communication link
- Large color touch display
- No gage factor or calibration
- Accuracy of ± 1°C
