The Local Exhaust & Ventilation Company Inc. (Lev-Co)

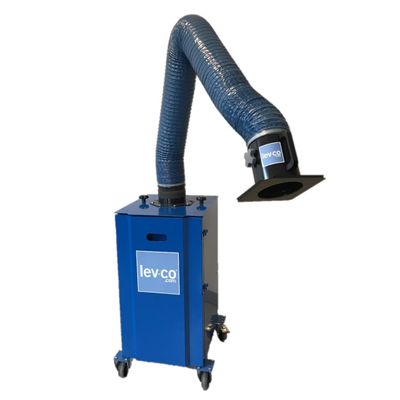

Lev-Co Roll-Flex - Model 1400 CFM - 02-001 -Portable Filter Unit
ROLL FLEX filter is ideally suited for most welding fumes, grinding, and non-explosive/flammable dust applications. This solution is compact, very flexible, and easy to use.
Most popular related searches
variable frequency drive
extraction arm
flexible extraction arm
filter cartridge
welding fume
welding fume dust
construction dust
fiber filter
wood dust
filter nozzle
The Roll-Flex is a "Plug and Play" option that uses an extraction arm with flexibility and wide range of motion. The compact design of the Roll-Flex unit has simple filter removal and an easy to move dust tray with a small shop footprint. Typical flow rates of 700 to 1,400 CFM.
Best suited for the following applications:
- Training & Testing facilities & schools
- Light to Medium welding applications
- MRO-Maintenance repair & overhaul
- "Rework" applications
Options Available:
- Motor Voltage Selection
- Hood & Nozzle Accessories
- Filter Options
- Variable Frequency Drives
- Powder-coated painted steel
- Fan 1.1 kW (1.5HP), 120 V/1/60, 2400 m³/hr.
- Comes standard with 1 washable filter (P-537)
- ON/OFF starter
- Cable and plug
- 7’ or 10’ extraction arm with a 6.5” Ø
- 4 easy to install casters
- Profitable Investment in many ways
- Decreases the need for general ventilation
- Decreases the amount of dust in the air
- Less dust will give less wear on the machinery and less cleaning in the workshop
- Robust, yet easily maneuverable
- Can be moved between different work stations without much effort
- Flexible extraction arm
- Simple maintenance with an easy to remove filter and dust drawe
Top 5 contaminants/processes/applications:
- Fine Wood Dust
- Welding Fumes
- Grinding Dust
- Paint Fumes
- New Construction Dust
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- RF-CF-7 : Roll-Flex Portable filter unit with 2m (7`) extractor arm (Ø6.5"), washable nano fiber blended filter cartridge and 1.5 HP 115/1/60 TEFC motor. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA
- RF-CF-10 : Roll-Flex portable filter unit with 3m (10`) extractor arm (Ø6.5"). cleanable nano fiber blended filter cartridge and 1.5 HP 115/1/60 TEFC motor. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA.
- Replacement Filters
- Hood & Nozzle Accessories
- Filter Options
- Variable Frequency Drives
