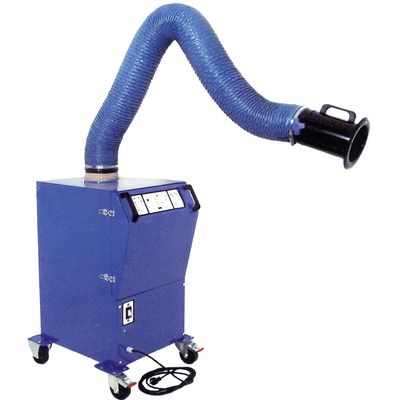

Lev-Co Roll-Flex - Model V - 1400 CFM - 02-023 -Portable Filter Unit

For the Roll-Flex-V, the air is pre-filtered with a washable particulate filter and then treated by either a single or dual stage, "gas phase" adsorption media filter. This solution is compact, very flexible and comes complete with a 7’ or 10` extraction arm.

Available Options:

• Filter Options
• 2nd Stage (Dual Pass) Gas Phase Filters
• Custom Adsorption Media for Filtering Non-VOC Gases
• Extension Hoods and Nozzles Options
• Hazardous Locations Certification
• Replacement Hoses
• Variable Frequency Drives

• Powder-coated steel sheet
• 1.1 kW Motor
• 120 V/1/60, 2400 m³/hr. (1400 CFM)
• Non-sparking aluminum impeller
• All steel construction

This version of the Roll Flex comes standard with:

• 4 Casters (2 swivel/lockable)
• 1 Impingement Baffle
• 1 High Capacity Washable Pre-Filter
• 1 Metal Refillable Carbon Filter Module for 18 lbs. of Adsorption Media
• Easy to Use Clean-Out Dust Tray
• ON/OFF Starter
• Cable & plug

• Motor is installed out of the airstream
• Aluminum Spark proof impeller
• 115V/1/60 convenient power
• Small Foot Print 22" X 24"
• Flexible Extraction arm for easy placement and proper capture

Top 5 contaminants/processes/applications:

• VOC`s
• Paint Fumes
• Spray Balms
• Odours
• Organic Vapours

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

• RF-V-10: Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 3m (10`) Extraction Arm. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
• RF-V-7: Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 2m (7`) Extraction Arm.  AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

• Hood Options
• Replacement Filters
• Hood & Nozzle Accessories
• Filter Options
• Variable Frequency Drives
