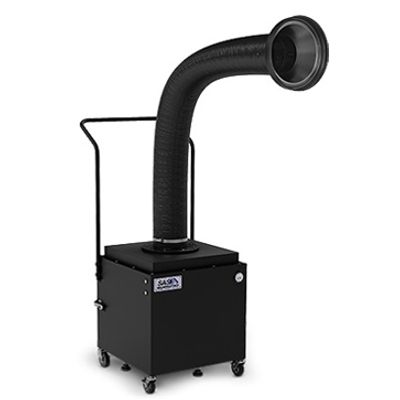

SAS - Model SS-400-PFS - 400 Series -Portable Floor Sentry Fume Extractor
The Portable Floor Sentry, manufactured by Sentry Air Systems, is a mobile fume extractor that functions as a safety engineering control used for the capture and filtration of airborne contaminants. This source-capture fume extractor features heavy-duty casters for easy mobility, a flame-retardant and self-supportive flex arm, a small footprint, and high-quality filtration media. Several filter media options are available for this unit and include HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger, ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Portable Floor Sentry Fume Extractor allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

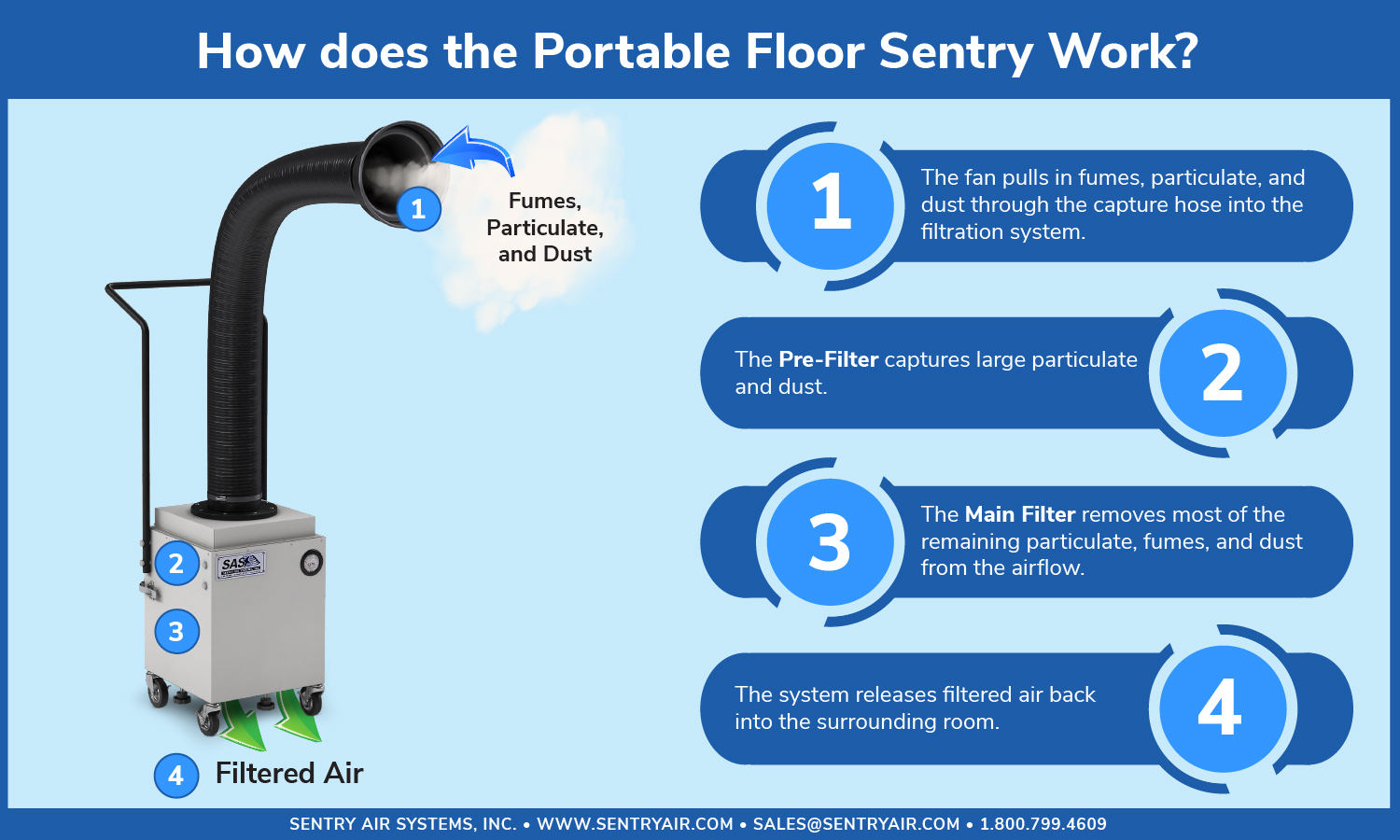

A portable floor sentry is a system that uses a fan to clean the air of harmful chemicals and particulates by pulling them into a filtration system. Fumes or particles that can be harmful to the user's health and environment are created by industrial processes such as welding, sanding, grinding, spraying, powder filling, and chemical applications. These ductless units have a powerful fan and high-quality filtration media that creates a recirculating air pattern, thus eliminating the need for ductwork or costly replacement air.
- Multiple sizes and features are available
- Ductless design
- Quiet operation
- Disposable filters for easy preservation
- Easy installation
- Energy and maintenance efficient
There are many applications that fit the use of a portable floor sentry, typical uses include:
- Chemicals
- Welding
- Soldering
- Solvent and Epoxy Fumes
- Grinding (Light)
- Dental Aerosols
Optional HEPA, ULPA, and charcoal filters are available for more demanding industrial ventilation system applications. However, in most cases, speaking with a subject matter expert to determine whether or not your application requires a Portable Floor Sentry is advisable.
Cabinet Dimensions:
- 22.5"L x 20"W x 19.5"H
Arm Dimension:
- 6" Round x 72" Long fire retardant flex hose
Weight:
60 lbs. to 110 lbs.
Cabinet Material:
16 ga. carbon steel
Air Volume:
Variable Speed Control Standard
700 CFM High, Down to 50 CFM Low
Electrical:
115/1/60, 2.5 amps
220/1/50 or 60, 1.5 amps
Sound Level:
60 dba @ 3 ft.
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745
Particulate SS-450
Cabinet Dimensions:
- 22.5"L x 20"W x 21.75"H
Arm Dimension:
- 6" Round x 72" Long fire retardant flex hose
Weight:
62 lbs. to 112 lbs.
Cabinet Material:
16 ga. carbon steel
Air Volume:
Variable Speed Control Standard
877 CFM High, Down to 0 CFM Low
Electrical:
115/1/60, 5.2 amps
Sound Level:
71 dba @ 3 ft.
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745
