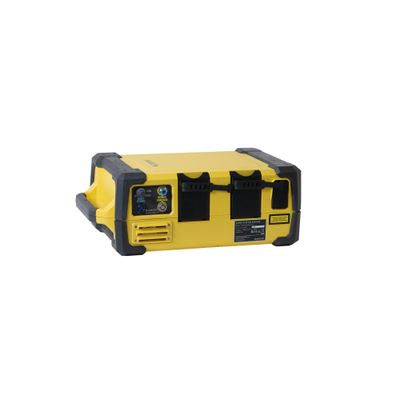

Gasmet - Model GT6000 Mobilis -Portable FTIR Gas Analyzer
GT6000 Mobilis — a complete emission monitoring system packed into a sturdy, portable device. Combining portability with high performance, the GT6000 Mobilis is a revolutionary emission monitoring system that can streamline measurement processes and save you a whole lot of time and effort, be it in a stack, a lab, or on the field. We designed the GT6000 Mobilis so that the setup, measurements, and analysis happen smoothly and time-efficiently, in short, make your work easier. It is the world`s smallest FTIR emissions monitoring system, and typically set up to measure H2O, CO2, CO, NO, NO2, N2O, SO2, NH3, CH4, HCl, HF and different VOCs. The system can measure up to 50 gases simultaneously.
- Intuitive user interface and ergonomic design
- Easy to disassemble, carry, and set-up again
- Multigas measurements in a portable package
- Realtime results reliably and remotely
- Exceptional robustness: shock and vibration resistivity by design
- Smart software with self-diagnostics for easy and fast service

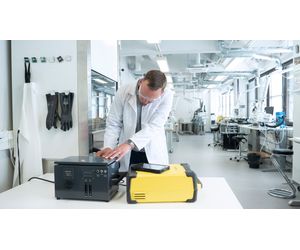

- Suitable for on site or laboratory use
GT6000 Mobilis (successor to our previous model DX4000) is designed to make life easier and the system more convenient for the user. And we do not say this lightly, but this powerful tool rivals fixed systems in its features.
The system is typically set up to measure H2O, CO2, CO, NO, NO2, N2O, SO2, NH3, CH4, HCl, HF and different VOCs and can measure up to 50 gases simultaneously. Additional gases can be easily added without any hardware changes. The corrosion-resistant sample cell is heated to 180 °C, which ensures that the sample stays in the gaseous phase even with high concentrations of H2O or corrosive gases. FTIR technology ensures that results will be available immediately on-site, and further analysis provides hard data for your specific needs
GT6000 Mobilis is designed to be used with the portable sampling system, PSS Plus or PSS Base. PSS utilizes the hot-and-wet measurement principle (no drying or dilution), which ensures that the analysis is done with a representative sample. There is two-stage particulate filtration: the first one in the sampling probe and the second one in the sampling system. The portable sampling system can be optionally equipped with a ZrO2 sensor for accurate oxygen measurement.
With all-new design the user experience has been taken to new heights. Integrated controls on front, 2 handles and cables in the back provide smooth operation. While PSS Base offers more basic design, for more hardcore work we have PSS Plus. PSS Plus comes with flow meters on front and has an instrument air option. This makes the system easier and cheaper for user while also providing safer operation, since nitrogen is only needed for background measurements.
