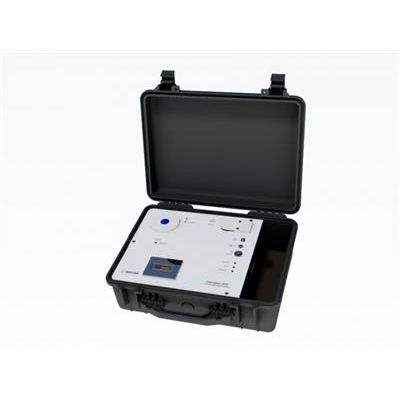

Interspec - Model 308 -Portable FTIR Spectrometer

Wavelength range: 7000 to 400 cm-1 (without ATR accessory). Wavelength range: 6000 to 600 cm-1 (with ZnSe ATR accessory). Resolution: 2 cm-1. Sample handling: 1 or 3 bounce ATR, transmission, reflection. Beamsplitter: Multicoated KBr. Frequency reference: VCSEL laser. IR source: High intensity air cooled ceramic. Data acquisition system: 18 bit, high speed. Software: Windows based. Interface: USB 2.0. Power: 12 VDC, 30 W. Dimensions: W49xD39xH20 cm. Weight: 12 kg.
