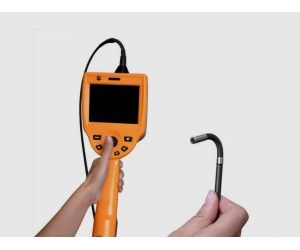

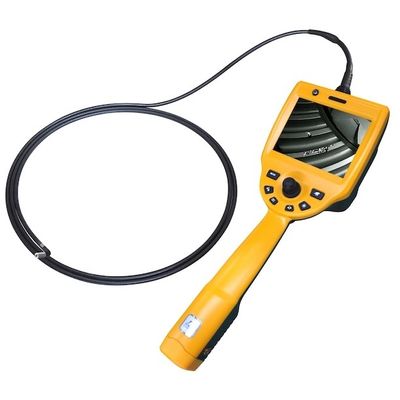

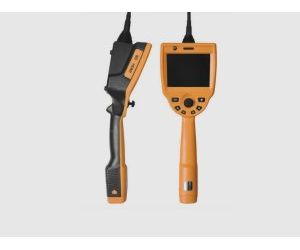

Fiberscope Voyager - Model C50 -Portable Full HD Video Borescope
FromFIBERSCOPE.net
The VOYAGER C50 HD Videoscope is a high-end, easy-to-use, portable device with motorized joystick tip articulation, high definition image quality, and a large color monitor. These units are designed to offer great image resolution and longer probe lengths for a wide range of applications.
Most popular related searches
borescope camera
borescope
video borescope
portable video borescope
videoscope
waterproofing
water proofing
corrosion probe
security system
corrosive water
Full HD Borescope Camera C50
- Ø3.9 - 8.0mm Probes
- All-way Motorized Tip Articulation
- Integrated Software Feature
Good for
- Detailed, High resolution inspection
- Inspecting long reach areas up to 32.8` (10.0m)
- Quick navigation to a target area with precise articulation
- 5" LCD High Definition Daylight Readable Monitor
- Powerful Software Functions
- Built-in 100,000 Lux LED Illumination, with 7 Stages
- 4-way Electronic Motor Controlled Tip Articulation with Auto Reset
- One Touch File Capture via Trigger Under the Joystick
- HDMI High-definition Video Output
- Display: 5 inch LCD sunlight readable display
- Image Resolution: 1280x720 / 960x720
- Video Resolution: 1280x720
- Digital zoom: Real-time 4times zoom,image can be partially enlarged at 8 times when viewing back
- Shooting and recording function: Taking image and video, ability to capture images during video recording
- System Security: Power-on password
- Image method: Color, Black-and-white, Negative film
- Assistant measuring: Tracking cross (scale)
- File edit: The document can be renamed and the enterprise logo can be added
- File format: Image: BMP, Video: MP4
- Video play: Video play fast forward, fast back function
- Image filp: 180° filp
- Image preview: Full-screen view/deletion/file name editing/note adding, time watermarking and PIP(picture in picture) display function under preview mode, two preview methods: list and squared up
- Storage: SD card
- Equipment durability protection device: Buffer protection device for connection between host and wear-resistant tube
- Emergency lighting: High light LED emergency lighting
- System weight: ≤1.35kg incl. battery
- Monitor protection: IP55
- Input/output port: HDMI
- Power supply: 1 set (3 batteries) 18650 rechargeable lithium-ion battery, standard 2 sets
- Working time: 1 set battery ≥4 hours
- System Operating Temp: -10-50°C
- Tip Operating Temp: -20-85°C
- Storage Temperature: -20-60°C
- Relative Humidity: 15-90%
- CMOS Sensor with 1280x720 Image Quality
- Protection Sapphire Lense
- 120 Degree Field of View Camera
- Articulating Probes with up to 32.8ft. Working Length
- IP67 Waterproof, Multi Layers Tungsten Braiding
- Laser Welded Points
- Probe diameter: 4.8mm, 6mm, 8mm
- Camera resolution: 1,000,000 pixels
- Insertion probe material: Titanium alloy
- Direction of view: Standard 0° forward (optional 90°side view)
- Depth of view: 0° forward: 5-180mm; 10-100mm. 90°side view: 3-30mm
- View angle: 0° forward: 120°; 90°side view: 70° / 90°
- Illumination type: Front LED lights or rear-mounted LED, optical fiber light guiding
- Illumination: Rear-mounted LED, optical fiber light guiding: illumination: 100,000Lux
- Articulation: 360°all way
- Bending angle: 1-5m ≥160°, 5m+ ≥120°
- Bending speed: Adjustable, step regulation
- Step function: Step regulation between high and low speed bend under locking
- Articulation locking: Yes
- Insertion probe material: Quadruple tungsten braided insertion tube
- Insertion probe length: 1.5-10m
- Insertion probe waterproof level: IP67, oil and water corrosion proof
- Videoscope Unit
- USB cable
- Card Reader
- SD Memory Card
- User`s manual
- Battery Charger
