ProVent - Model FXR -Portable Fume Collector
Standard Features: 4-Stage Filtration: Spark Arrestor, Pre-Filter, MERV-15 Primary, OdorWeb Carbon Final. Polyamide Backward Curved, HIgh Efficiency Fan. 6 inch diameter x 9 ft long flexible fume arm with hood. 110 Volt with 9 ft Power Cord. 2 Spare Accessory Outlets, 110 Volt. Integral Start/Stop with Circuit Breaker. Tool Tray - integral to machine top. 4` Casters, (2) locking and swivel, (2) fixed. Push Handle, removable. Differential Pressure Gauge.

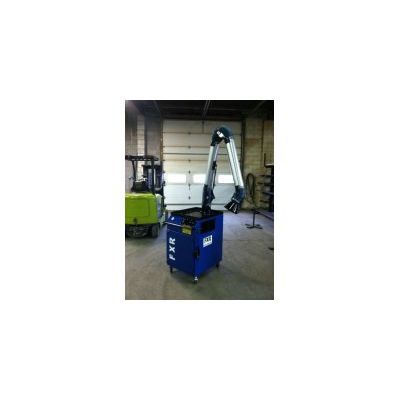

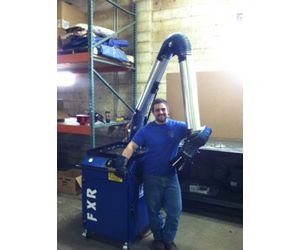

The FXR Fume Extractor rolls right up to work areas to capture and filter process fumes directly at the source. The included 6 inch diameter x 9 ft long flexible extraction arm makes it easy to provide excellent ventilation right where it is needed.
The FXR Fume Extractor is powered by a high efficiency backward curved glass reinforced polyamide, motorized impeller delivering 900 CFM of smooth, quiet, vibration free operation.
The FXR Fume Extractor is an effective ventilation solution for multiple work areas around the shop - with filtration efficiency of MERV 15 or 95% down to 1 micron. This means you will be sure to keep your workers safe from hexavalent chromium fumes prevalent in many welding processes.
The FXR Fume Extractor has four stages of filtration standard:
- Metal Mesh Spark Arrestor
- MERV-8 Pre-Filter (inexpensive throw-away to protect primary filter)
- MERV-15 High Capacity, Extended Surface, Mini-pleated Primary Filter
- Carbon impregnated media after-filter for odor control
The FXR Fume Extractor will keep workers safe and comfortable while ensuring a clean shop environment. Work areas are cleaner. Workers are healthier!
Powerful, small, quiet, and mobile, the FXR Fume Extractor is the perfect choice for welding, brazing, polishing, grinding, plastic production and many other fume extraction applications. Ask about one today!
Optional Features
- HEPA Filter
- Welding
- Brazing
- Polishing
- Grinding
