Sentry Air Systems - Model SS-300-PFS -Portable Fume Extractor

FromSentry Air Systems, Inc.

SHARE

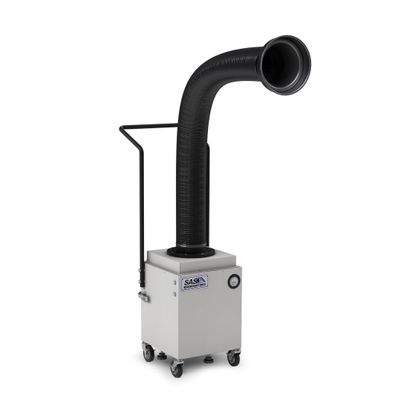

The Portable Floor Sentry fume extractor is a safety engineering control used for the capture and filtration of airborne contaminants. This source-capture fume extractor features heavy-duty casters for easy mobility, a 5` diameter flame-retardant and self-supportive flex arm, a small footprint, and high-quality filtration media.

Most popular related searches

portable fume extractor

welding fume control

magnehelic gauge

floor fume extractor

airborne contamination

Welding fume control
Chemical fume extraction
Soldering
Solvent and epoxy fume control
Powder filling
Light grinding
Variety of applications involving chemical fumes and dust.

Includes: portability handle, Variable Speed Controller (115V only), and ON/OFF switch (220V only)
Optional: Magnehelic Gauge, quick-change pre-filter, and hour counter
Quiet operation
Reliable, low-maintenance operation
Low power consumption
Simple, quick “no tool” filter change
Long filter life

Base Unit Dimensions
- Length: 15.5” (Including Control Box)
- Width: 13”
- Height: 16.5”
Arm Dimensions: 4” or 5” diameter x 68” long fire-retardant flex arm; 7” or 8.5” round capture hood
Cabinet Material: 16 ga. carbon steel with polyester epoxy coating
Weight (approximately): 40 lbs.
Air Volume (approximately): Up to 350 CFM
Electrical: 115/1/60, 2 amps; 220/1/50, 0.75 amps; 8’ grounded power cord with NEMA 5-15P plug
Sound Level: Approx. 61 to 66 dba
Limited Warranty: Limited two-year warranty from the date of shipment on defects due to materials or workmanship.
US Patent #: 5,843,197

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
