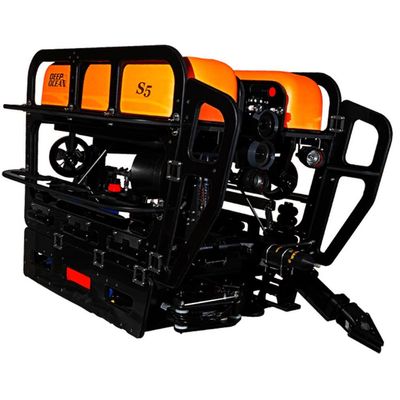

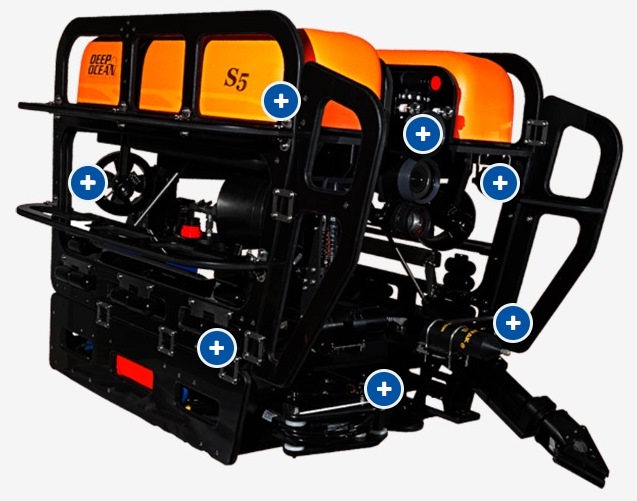

Phantom - Model S- Series - Portable High Performance ROV System
From Underwater Remotely Operated Vehicles / Underwater ROVs
A Powerful and Manueverable Inspection Class Vehicle. The Phantom S-Series is a portable, high-performance ROV that combines superior power, telemetry, and payload with ease of use, ruggedness and reliability. It can be configured with six or eight magnetically-coupled brushless Tecnadyne® thrusters to provide agressive lift capabilities at depths up to 1,000m. It delivers a powerful overall performance envelope and versatility compared to other inspection-class vehicles. It is designed for applications across a spectrum of industries, and even in the harshest of conditions.
Technology
The advanced technology of the Phantom® S-Series ROV platform offers powerful maneuverability and lift, incorporates an open architecture to integrate a wide variety of sensors, and is hand-built on a rugged, resilient, non-corroding polypropylene chassis that can accomodate heavier payloads.
Salient Features
- Superiorpower,payload,andtelemetry
- Depthratedupto1,000meters
- Easytouseandmaintain
- Ruggedandreliable
- Cost-effectiveandportable
- Moreversatilethanothervehiclesofitsclass
- Blackpolypropylene,non-conductive/non-corrodingframe
Application
- Pipeline inspection, routing, and survey
- Energy: hydroelectric dams, offshore wind turbines, oil & gas pipelines
- Infrastructure: visual leak detection, ultrasonic thickness detection, cathodic protection probe, flooded member detector
- Area mapping, seismic survey research, seabed sample collection
- Science: archaeology, geology, biology studies
- Drill support
Hardware & Software
- Tilt assembly with LED lighting and camera
- On Screen Display - color text and graphics overlay
- Graphical User Interface
- Dual Joysticks - forward, reverse, lateral, vertical.
- 2 LED lights of 30,000 lumens on fully dimmable circuits
- Navigation with auto heading and a stabilization pilot assist function
- Umbilical of 1000 meters standard length
Thrusters
- Configuration : 4-Vectored Horizontal Thrusters, 2-Vertical (optional 2 aft for the S8)
- Forward Thrust : 165kgf (364lbs) (S6) / 260kgf (574lbs) (S8)
- Reverse Thrust : 157kgf (346lbs) (S6) / 248kgf (546lbs) (S8)
- Lateral Thrust : 91kgf (200lbs) (S6) / 91kgf (200lbs) (S8)
- Vertical Thrust : 92kgf (202lbs) (S6) / 92kgf (202lbs) (S8)
- Thrusters : 1.5 hp Tecnadyne magnetically-coupled brushless
Weight & Size
- Weight : 295kg (650lbs) (S6) / 313kg (690lbs) (S8)
- Length : 1360mm (53.5 in)
- Width : 860mm (33.9 in)
- Height : 740mm (29.0 in)
