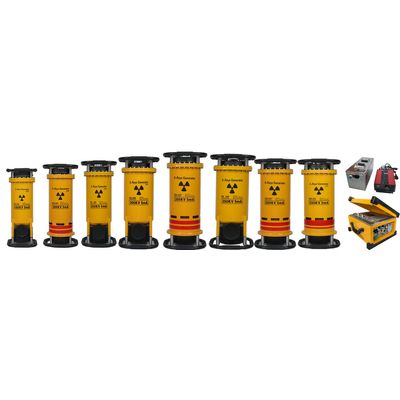

Portable Industrial NDT x-ray flaw detector
Model: XXQ series (Directional x ray machine with glass tube inserted.)， XXG series (Directional x ray machine with ceramic tube inserted.), XXH series (Panoramic x ray machine with glass tube inserted.), XXGH series (Panoramic x ray machine with ceramic tube inserted.) Contact Eva for your request: sfjcndtsales@yeah.net- Light weight, portable, easy to use
- The ratio of the exposure fine to the stop time is 1:1
- Auto-train, compact x-ray generator, anode grounded, forced air cooling
- SF6 gas insulator, grounded-anode design to keep the operator safety.
- Modular structure, high degree aluminum radiator to improve 30% heat radiation
- High voltage ,time delay function protects the operator from radiation
- Strictly controlled the production techniques, nice sculpt, reasonable design.
- The frequency conversion control start rate is adaptive to different generators, and the voltage has soft start and slow shutdown.
Mini Size Directional Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXG-2505CL 130~250 2.5 2.0×2.0 40°+5 40 18 φ230×610
XXG-3005CL 150~300 3.0 2.5×2.5 40°+5 50 25 φ280×660
Panoramic Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXGH-2505CLZ 130~250 2.5 1.0×3.5 30×360° 32 19 φ230×640
XXGH-3005CLZ 150~300 3.0 1.0×5.0 30×360° 42 24 φ260×670
Directional Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXG-1605 30~160 1.5 1.0×1.0 40°+5 20 18 φ230×580
XXG-2005 100~200 2.0 1.5×1.5 40°+5 30 18 φ230×580
XXG-2505 130~250 2.5 2.0×2.0 40°+5 40 23 φ280×630
XXG-3005 150~300 3.0 2.5×2.5 40°+5 50 32 φ320×660
XXG-3505 200~300 3.5 2.5×2.5 40°+5 60 36 φ340×715
Panoramic Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXGH-1605Z 30~160 1.5 1.0×3.5 30×360° 12 18 φ230×580
XXGH-2005Z 100~200 2.0 1.0×3.5 30×360° 22 18 φ230×580
XXGH-2505Z 130~250 2.5 1.0×3.5 30×360° 32 23 φ280×650
XXGH-3005Z 150~300 3.0 1.0×5.0 30×360° 42 32 φ320×660
XXGH-3505Z 200~300 3.5 1.0×6.0 30×360° 52 36 φ340×715
