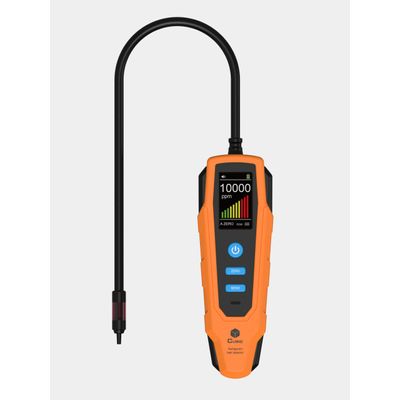

Cubic - Model AM4209 -Portable Infrared Refrigerant Gas Leak Detector
Cubic AM4209 is a portable refrigerant leak detector developed based on Non-Dispersive Infrared (NDIR) technology, which could be customized for highly sensitive leak detection of HFCs, HFOs, and blends of refrigerants including R32/R290/R410A/R134a/R454A/R454B/R454C/R1234ze/R1234yf. By measuring the infrared absorption characteristics of refrigerant molecules at specific wavelengths, the NDIR principle enables highly selective detection of HFCs, HFOs, and blended refrigerants. The built-in self-developed NDIR refrigerant gas sensors have long-term stabilities and eliminate the need for sensor replacement, significantly reducing maintenance requirements. The detector adopts an industrial-grade optical and signal processing design for both static and dynamic leak detection, capable of detecting static leaks as low as 0.03 oz/year (1 g/year) and dynamic leaks down to 0.1 oz/year (3 g/year), with a fast response time of less than one second.Most popular related searches
refrigerant gas detection
refrigerant gas
refrigerant leak detection
NDIR hydrocarbons
NDIR technology
refrigerant gas leak detection
refrigerant leak
leak detection
portable leak detection
NDIR gas sensor
- Non-Dispersive Infrared (NDIR) technology
- Highly sensitive leak detection of HFCs, HFOs, and blends of refrigerants
- Built-in self-developed NDIR refrigerant gas sensors
- OEM & ODM design capability
- Real-time ppm and bar graph working mode for fast the leakage area localization
- Long lifespan of 10 years
- Built-in lithium battery with large capacity to support fast charging
- Measurement Refrigerant Gas: R32/R290/R410A/R134a/R454A/R454B/R454C/R1234ze/R1234yf
- Maximum sensitivity: Static: 0.03oz/a (1g/a); motion: 0.1oz/a (3g/a)
- Response time: ＜1s (typical)
- Working environment: 0℃~40℃ (32℉~104℉), ＜75%RH (non-condensing)
- Storage environment: 20℃~60℃ (-4℉~140℉); ＜80%RH
- Charging time/standby time: 6H/10H (backlight off)
- Automatic shutdown: 10 min
- Protection level: IP54
- Display: LED, LCD color screen, buzzer
- Compliance: EN 14624
- Power supply: Lithium-ion: 3.7VDC, 2550mAh (rechangeable)
- Lifetime: 10 years
