LK Metrology - Portable Measuring Arms

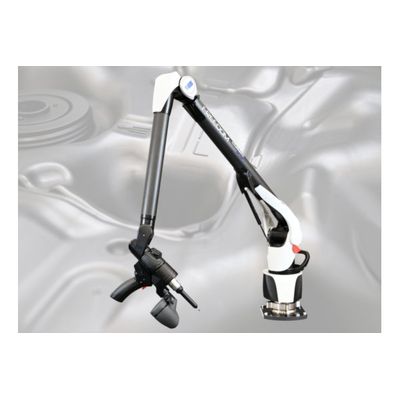

LK Metrology launches the FREEDOM ARM range of 6 axis and 7 axis portable measuring arms – for quality control, on-machine verification, reverse engineering or 3D modelling. Available in three models, three accuracy levels and several sizes in different portable arm configurations with touch probe and laser scanner options.
Most popular related searches
Multi-Functional
- Design for PRODUCTIVITY so manufacturing processes can stay on schedule.
- Design for PRACTICALITY so users can measure in almost any manufacturing environment.
- Design for FLEXIBILITY so the demands of any metrology challenge can be overcome.
Productivity
- START IMMEDIATELY no warm-up time, no encoder referencing, no probe or laser calibrations required on start-up.
- SWITCH QUICKLY between probe and laser without interrupting the measurement process to recalibrate and without any loss of data integrity.
- SPIN GRIPS for easier handling of the arm on larger parts.
ENVIRONMENT
- Operating temperature : +5OC to +40OC
- Storage temperature : -30OC to +70OC
- Operating elevation : up to 2000m
- Relative humidity : 10% to 90% non-condensing
SUPPLY
- Power supply : 110-240V single phase
CONFORMITY
- Freedom Arm : Probing accuracy certified according to ISO 10360-12 CE – FCC - IC
- Modelmaker H120
- Laser Scanner : CE – Complies with 21 CFR 1040.10 and 1040.11, Laser Notice No. 50 dated June 24, 2007
