Sentry Air Systems - Model SS-200-MFE/SS-225-MFE -Portable Mini Fume Extractor

FromSentry Air Systems, Inc.

SHARE

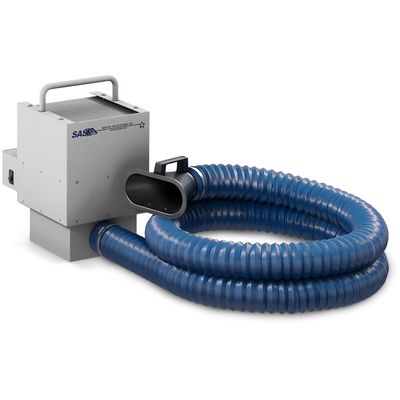

The Mini Fume Extractor is designed to extract fumes and particulate in hard-to-reach areas. The system's small size, quiet operation, convenient mobility, and high-efficiency filtration provide an excellent choice for several applications including maintenance welding, brazing, soldering, light epoxy or solvent fume removal, chemical fumes, and particulate extraction. The convenient carrying handle and magnetic hood make this unit highly portable.

Most popular related searches

solvent fume control

fume extraction

activated carbon

portable fume extractor

specialty filter media

Maintenance welding
Brazing
Soldering
Light epoxy or solvent fume removal
Chemical fumes
Particulate extraction

Included: 43” length x 3” diameter fire-retardant flex hose and magnetic capture hood
Optional: variable speed controller (115V only) and hour counter
Highly portable and lightweight
Reliable, low-maintenance operation
Quiet operation
Simple, quick “no tool” filter change
Long filter life
Small footprint

Base Unit Dimensions
- Length: 10.5” (includes control box)
- Width: 8”
- Height: 12”
Arm Dimensions: 3” diameter x 43” L; 7” x 3.5” capture hood
Cabinet Material: 16 ga. carbon steel
Weight: Approx. 15 lbs
Air Volume (approximately)
- Pre-Filter + HEPA:
  - 200: up to 80 CFM
  - 225: up to 91 CFM
Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet)
- 200: Approx. 56 dba
- 225: Approx. 64 dba
US Patent #: 5,843,197

HEPA [up to 99.97% efficiency on particles 0.3 microns and larger]
ASHRAE [up to 95% efficiency on particles 0.5 microns and larger]
ULPA [up to 99.9995% efficiency on particles 0.12 microns and larger]
Activated Carbon
Specialty-Blended Filter Media [i.e. acid gas, mercury, aldehyde, and ammonia]
