Scentroid - Model SC300P -Portable Olfactometer with EEG and FNIR Capabilities
Scentroid SC300P (Scientific Olfactometer) is a specialized multi-sensory olfactometer with EEG and FNIR capabilities for advanced psychological and physiological research and treatment. The SC300-P has been used by researchers and doctors to treat a variety of disorders including post-traumatic stress disorder.
Multi-sensory Stimuli Instrument
The SC300P (Scientific Olfactometer with EEG Capabilities) is more than just an olfactometer, but a true multi-sensory stimuli instrument. Up to 8 odours can be connected to the instrument and programmed to be administered to the panellist at various concentrations. Images, videos, and audio stimuli can be simultaneously administered by the SC300P (Scientific Olfactometer with EEG Capabilities) via its external monitor to provide complete sensory immersion.
EEG, FNIR, and EPrime Scientific Olfactometer Connectivity
The SC300P (Scientific Olfactometer with EEG Capabilities) seamlessly integrates with EEG and FNIR machines to provide simultaneous stimuli readings from the panellists. Trigger signals will provide a clear reference on which stimuli were being administered. E-Prime connectivity allows the SC300P to act as a master or as part of a large network of instruments in a comprehensive study.
Complete Solution
The SC300-P is built into two rugged waterproof Pelican® cases weighing less than 20 Kg each for ease of transportation
Dedicated Administrator Station
Admin Station with the Siemens 8”touch screen to view live results, analyse data
Software Reliability
Uses Siemens industrial PLC with real-time operating system for reliable operation and a seamless integration with EEG and FNIR instruments
Zero Contamination
All mass flow controllers, solenoid valves have 100% stainless steel wetted surfaces
Test Modes
Loaded with variety of physcological and psyological test modes such as olfactory/audio psycological evaluation where pulses of odour and visual stimuli are presented
Odour Library
Up to 8 odours simultanously. The odours are pulled automatically into the SC300-P using vacuum rather than presurization
Use the SC300P Scientific Olfactometer to:
- Olfactory sensitivity testing
- PTSD study and treatment
- Multi-sensory psychological studies linking scent to brainwaves
- Diagnostic and treatment of olfactory disorders
- Product testing and market research
Panel Size: 1-8 panelists can participate in a single test, as specified by the administrator
Panel Order Setup: Users can either run 1 test at a time and rotate to the next panlist, or conduct the full test sequence then rotate
Testing Modes: Sensitivity analysis, Audio/Olfactory pulse presentation, Psychological video/olfactory analysis, custom audio/olfactory/ image test mode
Multiple Odourants: 4-8 odourant capabilities (must be specified when ordering) allowing for mixing
Re-calibration: Activated through the admin screen
Dilution Principle: Venturi educator
Control Mechanism: Mass flow controllers on both clean air and sample air intake
Dilution Range: 2^3 to 2^17 optional range extension
Dilution Steps: Variable
Accuracy: 95%
Air Flow:
Total Air Usage: 70 Liters per minute at 80- PSI of clean air
Pressure Flow Rate: Variable, 5 to 30 liters per minute
Presentation Velocity: 0.25 m/s at 20 liters per minute
Response Time: 0.2s
Sample Delivery: Adjustable
Control:
Control: Siemens PLC
Computer Interface: Ethernet Network / USB
Display: Large 32" full-color touchscreen Admin and separate industrial 6" screen for panelists

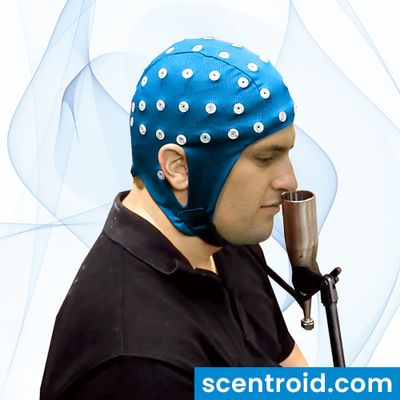

Olfactory Interface: Your choice of sniffing port or half-face disposable masks
Medical Interface: EEG (RS232), FNIR (RS232) Eprime (RS232 USB + Ethernet optional)
Data Processing: Test Data including end-criteria and statistics processed through PLC
Languages: English, French, Spanish, Chinese, German and Turkish
Warranty: 24 Months Full Warranty
