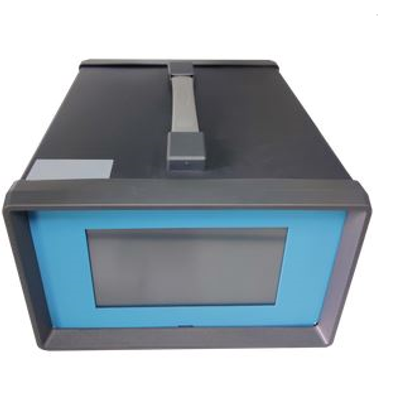

Zetian - Model AM-5401 -Portable Ozone Analyzer

SHARE

AM-5401 portable ozone analyzer adopts the principle of untraviolet spectrohotometry and combines with advanced micro-processing technology to provide accurate and reliable low-concentration O3 detection of `ppb-ppm` level, which meets application requirements of atmospferic monitoring.

Most popular related searches
portable ozone analyzer
air quality monitoring
road air quality monitoring
ozone analyzer
air quality monitoring system
industrial air quality monitoring
air monitoring
environmental quality monitoring
road air quality
industry air quality
  • Adopt EPA  standard method and Untraviolet Absorption method
  • With temperature and pressure compensation
  • Modular structure:reduce operation and maintenance cost
  • Long service life, built-in small diaphragms pump with low noise
  • Available complete module, easy to ntegrated in other systems
  • provide RS232 communication interface and standard Modbus protocol
  • High and low range can be configured
  • Emergency environmental air quality monitoring;vehicle environmental air quality monitoring; road air quality monitoring;personal occupational health monitoring;integrated for industrial online ozone concentration monitoring;air quality monitoring in small space(such as stadium, park,etc)
  • Measuring range: 0-500ppb,0-10ppm(adjustable)
  • Sampling flow rangeMeasuring range: 0-500ppb,0-10ppm(adjustable)
  • Sampling flow range: 800SCCM±10%
  • Unit: ppb,ppm,ug/m3,mg/m3
  • Ambient temperature: 5-40℃
  • Zero noise: ＜0.2ppb（RMS）
  • Dimension: 150*250*300mm
  • Limit of detection: 0.4ppb
  • Weight: 6kg
  • Zero drift: ＜1ppb/24h
  • Span drift: ＜1%/24h
  • Power: 200-240V, 50/60Hz,400W
  • Analog output: 10V,5V,1V,0.1V(selectable)
  • Response time: ＜120s(T90)
  • Communication: RS232, RS485800SCCM±10%
  • Unit: ppb,ppm,ug/m3,mg/m3
  • Ambient temperature: 5-40℃
  • Zero noise: ＜0.2ppb（RMS）
  • Dimension: 150*250*300mm
  • Limit of detection: 0.4ppb
  • Weight: 6kg
  • Zero drift: ＜1ppb/24h
  • Span drift: ＜1%/24h
  • Power: 200-240V, 50/60Hz,400W
  • Analog output: 10V,5V,1V,0.1V(selectable)
  • Response time: ＜120s(T90)
  • Communication: RS232, RS485
