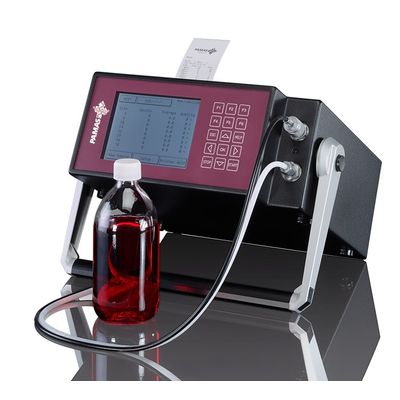

PAMAS - Model S40 -Portable Particle Counting System for Oil-Based Liquids
Particle counter for the remote on-site analysis of fluid samples – pressureless sampling and up to 420 bar system pressure testing. The PAMAS S40 is a portable particle counting system for oil-based liquids like hydraulic and lubricating oil. A wear resistant ceramic piston pump guarantees a constant flow. With a simple-to-use touch screen user interface, operation is easy and intuitive. The system is equipped with an integrated battery for up to three hours operation and a data storage of up to 4000 measurements. The system can be used for batch sampling and online measurements. Additional accessories are available.
- Hydraulic oils
- Turbine and insulation oils
- Gear oils
- Phosphate ester based hydraulic fluids
- Fuels
- Robust & convenient design
- Lightweight only 8 kg
- Customizable measurement analysis settings
- Intuitive operation via touch screen
- Automatic sample flow and volume control by wear resistant ceramic piston pump
- Measurement from pressureless up to 420 bar system pressure
- Pressureless measurement of fluids with viscosities of up to 1.000 cSt at 22°C (equal to ISO VG320) without the need for accessories
- Use of any sample vessel (any customer specific or widely available containers)
- Internal data storage of more than 4,000 measurements
- Measurement printout via integrated thermoprinter
- Same measurement accuracy as a laboratory unit
- Multilingual menu navigation
- Battery running time of more than 4 hours
PAMAS HCB-LD-50/50
Available size ranges:
4–70 µm(c) (ISO 11171)
2–100 µm (ISO 4402)
Max. particle concentration:
24.000 P/ml at 25 ml/min
Other sensors for larger particle sizes or higher concentrations are available on request.
- PAMAS Download: used to transfer stored measurements to a PC
- PAMAS CMDM: Condition Monitoring Data Management
- PAMAS PMA: Particle Measuring and Analysing Software
