Phantom FireFly - Portable ROV Systems

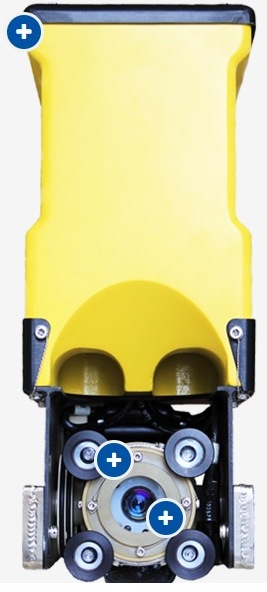

Sized to Penetrate the Top Guide and Core Plate for BWR Bottom of Vessel Exams With Guides and Plates Installed. The Phantom® FireFly is a small, portable system whose primary visual exam task is the steam dryer, and is sized to reach the bottom of the vessel via stub tube or a removed fuel bundle. With no electronics in the sub-unit the Phantom® FireFly maintains reliability in areas of high radiation.
Most popular related searches
underwater ROV
remotely operated vehicle (ROV)
underwater vehicle ROV
containment pool
ROV system
underwater vehicle
underwater vehicle operator
locating system
The Phantom® FireFly operates with the NIS-300 Control System; A digital control system designed to be backwards compatible with all existing FireFly ROVs in the fleet and a smaller, more concise topside controls package. Multiple video formats (single coax, Y/C and 1080P) are supported.
- Torque balanced thrusters provide a high degree of control and maneuverability in the confined environments of a containment pool, transfer canal or spent fuel pool
- No electronics in the sub-unit ensures reliability in areas of high radiation
- Hardwired for fast and easy integration with accessories
- All system fuses located in the surface control console for fast access
- Steam Dryer visual exams
- Emergent exams of necessity below the fuel
- 48 volts DC motors, driven at around 60VDC
- Shaft driven
- Individually controlled
- Mineral oil filled compensator on shaft seal
- Weight : 6.35kg (14 lb)
- Length : 190mm (7.5 in)
- Width : 146mm (5.8 in)
- Height : 343mm (13.5 in)
