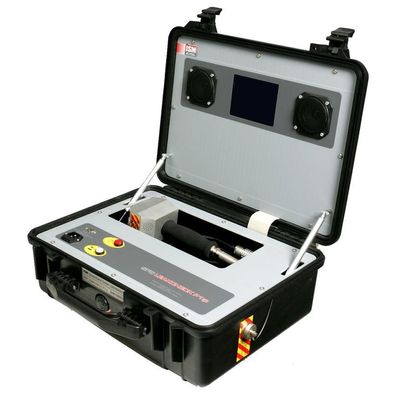

LeakCheck P1:p - Portable SF6 Leak Detector
The SF6 LeakCheck P1:p is an award winning SF6 gas leak detector that uses negative Ion Capture (NIC) technology designed for location, leak testing and measurement of SF6 leaks in high electrical switchgear. The SF6 gas leak detector rapidly detects leaks down to 1 x 10-8 ml/sec with a quick clear down of less than 1 second. The leak detector is unaffected by the exposure to large leaks and will continue to remain uncontaminated even after the exposure to 100% SF6 gas.
The SF6 gas leak detector has a range of accessories available including the 5, 10 and 15 metre extension hose and the 300 & 500mm flexible probe extender.
- Ultra high sensitivity with a 1 x 10-8 ml/sec* (*Highsense option)
- Unaffected by large leaks and 100% SF6 meaning no frustrating delays between searches
- Lightweight ergonomically designed hand sensor
- 1 second rise and clear down for rapid leak detection
- Simple data storage and printing for analysis
- Non-radioactive source for easy storage and transportation
- No training required – switch on and go
- Choice of display units cc/sec, gm/yr and ppm for monitoring conformance to leak minimisation targets
Specification: Value
- Measurement Principles: Negative Ion Capture (NIC): a non radioactive, non-restricting carriage and no licensing required
- Sensitivity:
- Standard SF6 GasCheck p1 and LeakCheck P1:p
- 1 x 10-7 ml/sec, 1 ppm, 0.01 gm/yr SF6
- Highsense option
- 1 x 10-8 ml/sec, 0.1 ppm, 0.001 gm/yr SF6
- Response: T90 = < 1 second rise and clear down
- Operation:
- Lead acid battery, internal and fully protected
- Recharge between 85-265 AC V, 50/60 Hz
- Alarm: Audio and visual with an optional handset alarm
- Measurement Units:
- Measurement in l/sec, gm/yr and ppm
- Range: Each unit 1 – 500
- Accuracy: ± 5 % of displayed leak rate or ± 2 digits
- Repeatability: ± 1 digit
- Calibration: Via CalCheck calibration accessory
- Data Logging:
- Over 500 data points with date and time stamp
- Download via RS232 to a PC
- Temperature:
- Storage: – 10 to 60 °C (14 to 140 °F)
- Operating; 0 – 50 °C (32 to 122 °F)
- Weight and Dimensions:
- Consol: 500 x 400 x 190 mm (19.7 x 15.7 x 7.5″)
- Shipped: 520 x 430 x 10 mm (20.5 x 6.9 x 8.3″)
- Shipped 15 kg (33lbs)
* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ˚C, 90% RH and 1000 mBar
*Model dependant.
