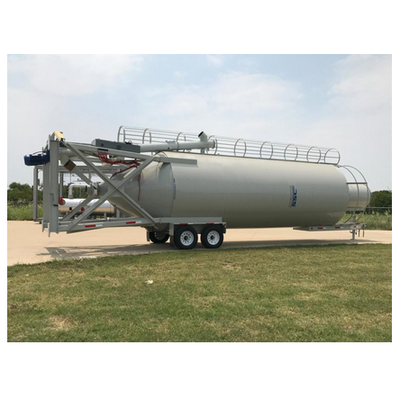

DSS - Model 1400c.f. -Portable Silo with Pivoting Auger
One of our newest designs, the 1400 Portable Silo has an attached external WAM ES auger that pivots both up and down, making transportation through your worksite seamless. Like all of our silos, it comes fully assembled, so you can start utilizing it as soon as it arrives.
Most popular related searches
pulse jet dust collector
dust collector
relief valve
level indicator
control valve
pulse jet collector
shaker dust collector
pulse dust collector
safety system
auger drive
- WAM 10” x 15 ES Auger 15hp 480v motor with direct drive gear reduction
- 30 cfm capacity mounted on a pivot with hand winch
- WAM Shaker R03 dust collector with an electric shaker on a timer
- WAM VCP Overpressure relief valve
- 9 Oli VBI Fluidizers connected to an aluminum manifold with individual control valves
- 20” manway on top of the silo
- High-level indicator with horn and light
- Full ladder with safety cable system
- Full upper railings
- 20” pressure manway
- Heavy-duty support legs
- 480v 100amp Allen Bradley electrical starter panel with all controls wired to the silo
- Pintel hitch trailer connection with electric brakes, running lights, two 7K torflex axles with 16” -8 lug wheels.
- Primed and painted DSS Grey
- Scale system
- 6”, 8” or 12” auger
- Variable speed drives
- Pulse Jet dust collectors from 1500-2200 cfm
