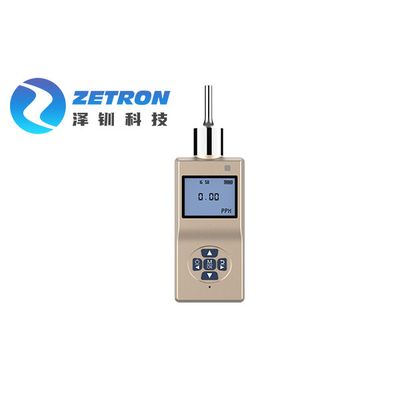

Zetron - Model MS200 -Portable Single Gas Detector
MS200 is a hand-held pump-type gas detector . It adopts ABS+PC housing, excellent performance and various indicators, and adopts brand-new imported sensors and low power consumption ARM processor. The circuit adopts 4-layer wiring, which is stronger to weak signal and anti-interference. Independent high precision imported ADC analog-to-digital conversion chip, with the company`s unique signal processing algorithm, the measurement results are more accurate and stable; 2.5-inch LCD dot matrix display, intuitive and generous reading; Strict control of workmanship and quality.
Place of Origin: China
Brand Name: Zetron
Certification: CE
Model Number: MS200
Minimum Order Quantity: 1 Piece
Packaging Details: paper carton
Payment Terms: L/C, D/A, T/T
Product Name: Portable Single Gas Detector
Brand Name: Zetron
Model Number: MS200
Function: Portable Gas Detector
Sampling Method: Pump Sampling
Alarm Type: Light+Sound
Warranty: 12 Month
Display: LCD Screen
High Light: Zetron HandHeld Gas Detector, Pump Suction Toxic Gas Detector, CE LCD Screen Toxic Gas Detector
- Imported high performance sensor, long service life;
- Built - in high performance air pump, flow rate is stable, can switch control;
- 5.is Navigation button, user-friendly and easy to operate;
- Support switching between Chinese and English;
- Can store 100,000 sets of data;
- Intelligent algorithm, more accurate measurement results;
- 2600mA large capacity lithium battery, continuous working time of more than 20 hours (electrochemical principle);
- USB mobile phone charger;
- %VOL, %LEL, mg/m3, PPM, PPH, PPB units can be selected;
- Acousto-optic alarm, timely alarm when the concentration exceeds the standard, to protect personal safety;
- %VOL, %LEL, mg/m3, PPM, PPH, PPB units can be selected;
- Acousto-optic alarm, timely alarm when the concentration exceeds the standard, to protect personal safety.
| Number |
Type of gas |
Range | Respond timeT90 (?) |
| 1 | ASH3 | 0-5ppm | <90 |
| 2 | Br2 | 0-20/200ppm | <60 |
| 3 | C2H2 | 0-10/100ppm | <90 |
| 4 | C2H4 | 0-10/100ppm | <80 |
| 5 | CH2O | 0-10/50ppm | <80 |
| 6 | CH3SH | 0-10ppm | <90 |
| 7 | CH4 | 0-100%LEL | <30 |
| 8 | CL2 | 0-10/50/200ppm | <90 |
| 9 | CLO2 | 0-1/50ppm | <90 |
| 10 | CO | 0-100/500/1000ppm |
<30 |
| 11 | ETO | 0-10/100/500ppm | <120 |
| 12 | H2 | 0-1000/40000ppm | <60 |
| 13 | H2O2 | 0-100/500ppm | <60 |
| 14 | H2S | 0-100/1000ppm | <60 |
| 15 | HCL | 0-50/200ppm | <80 |
| 16 | HCN | 0-50ppm | <30 |
| 17 | HF | 0-10/100ppm | <90 |
| 18 | NH3 | 0-20/100/1000ppm | <90 |
| 19 | NO | 0-250/2000ppm | <60 |
| 20 | NO2 | 0-20/2000ppm | <60 |
| 21 | O2 | 0-30%VOL | <25 |
| 22 | O3 | 0-1/10/100ppm | <90 |
| 23 | PH3 | 0-20/1000ppm | <30 |
| 24 | SIH4 | 0-50/200ppm | <60 |
| 25 | SO2 | 0-20/2000ppm | <40 |
| 26 | THT | 0-50mg/m3 | <60 |
Used in all kinds of dangerous industrial places; For example: metallurgy, petroleum and petrochemical, municipal, chemical, biological pharmaceutical, household environmental protection, school laboratory, automobile exhaust and other fields.
