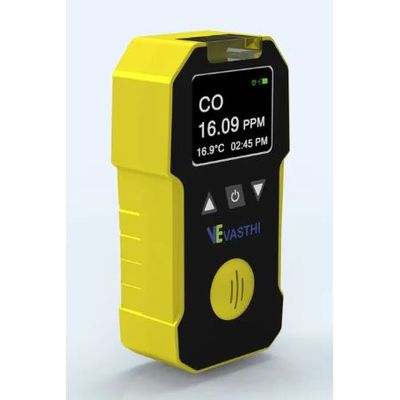

Vasthi - Model VS-70 -Portable Single Gas Detector / Monitor
Single-Gas Detector is a device that detects the presence of any gas within an area, usually as part of a safety system. This type of Single-Gas Detector Equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. A gas detector can also sound an alarm to operators in the area where the leak is occurring, allowing them to leave the area.
We supply an immense choice of Gas finders and screens for various applications like Oxygen, Combustible Gases, Carbon Monoxide The gas detector adopts embedded MCU controller detector adopts and easy to operate,
These units can be provided with sensors to recognize the most well-known gases, just as a scope of more extraordinary gases for changing applications. VS-70 xx Portable Gas detector locators are additionally accessible with a PID sensor to identify the presence of Volatile Natural Compounds and with Infrared IR sensors for the estimation of CO2 and now and again combustible gases.
Single gas detector individually we can provide gas detectors for the following gases:
- Oxygen
- Combustible Gases
- LPG
- Hexane
- Hydrogen
- Carbon Monoxide
- Hydrogen Sulphide
- Chlorine
- Sulfur Dioxide
- Ammonia
- Hydrogen Chloride
- Hydrogen Cyanide
- Nitric Oxide
- Nitrogen Dioxide
- Ethylene
- Phosphine
- Phosgene
- Ozone And Many More
- Model No VS-70
- Sensor Technology Electrochemical, Catalytic & NDIR, PID
- Monitoring Parameters Combustible gas(CH4,C3,H8,H2) and toxic gas oxygen other rare toxic gases like NH3, NO,PH3, NH3, NO2, HCN,So2,
- Resolution 0.1
- Accuracy +/- 0.2% of Full Scale
- Response Time T<30s
- Display Digital Graphical Display
- Operating Power 230 VAC, 50HZ
- Battery Life up to 15 hour continuous operation
- Digital Output USB
- SPAN Calibration Yes
- ZERO Calibration Yes
- Sampling type diffusion & auto suction available
- Sensor life 3-4 years
- Alarm facility User presettable
- Alarm Indication 2 Level available Low & High
- weight less than 200 grams
