Bonad - Model IEC 60529 IPX56 - BND-IPX56P -Portable Spray Water Jet Nozzles
IEC60529 Ipx5 and Ipx6 Water Spray Jet Nozzle for Waterproof Testing. Type:BND-IPX56P.
Most popular related searches

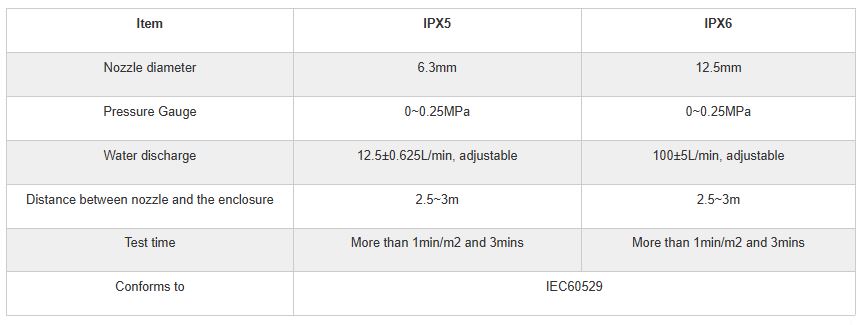

- internal diameter of the nozzle:6.3mm
- delivery rate:12.5/min+/- 5%
- water pressure:to be adjusted to achieve the specified delivery rate
- Core of the substantial stream:circle of approximately 40mm diameter at 2.5 distance from nozzle
- Test duration per square meter of enclosure surface area likely to be sprayed :1mm
- Minimum test duration :3min
- Distance from nozzle to enclosure surface:between2.5 and 3m

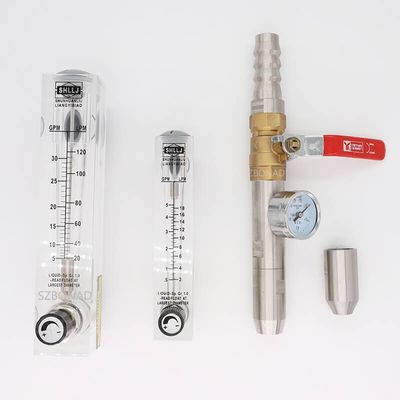

- Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.The interchangeable nozzles assemble easily to the jet handle.
- The nozzles are made from stainless steel.
