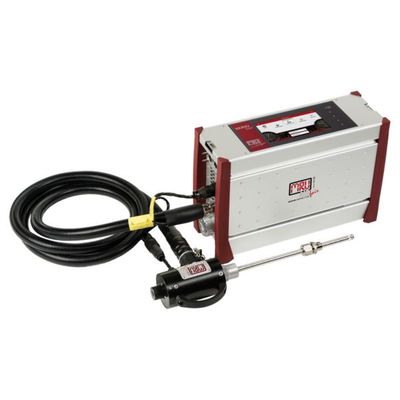

MRU - Model VARIOluxx -Portable Stack Gas Emission Analyser
Portable stack gas emission analyser for long time measurements of industrial combustions.
Most popular related searches
portable stack gas analyzer
stack gas
gas emissions
heated sampling system
emissions analysis
emissions analyzer
stack emissions analyzer
stack emissions analysis
stack emissions gas analyzer
stack gas analyzer
- precise measuring technique by means of infrared (3-gas) and electrochemical cells (6-gas)
- most suitable for precise low Nox measurements and other toxic gas emissions measurement according
to new MCP Directive 2015/2193 for medium combustion plants with rated power <50 MW - all important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
- Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)
- Integrated, efficient electrical gas cooler (Peltier cooler) with automatic condensate draining pump
- Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
- Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
- Zero gas (ambient air) inlet nozzle and separate passive VENT outlet nozzle for sample gas
- O2 measurement included, using long-life electrochemical cell
- Stack gas temperature measurement up to 1.200°C (optional up to 1.700°C)
- Differential pressure or stack gas pressure +/- 100 hPa
- Combustion air temperature up to 500°C, using adequate NiCrNi probes
- Automatic measurement incl. data logging function
- Large fuel type list incl. self choose fuels with user definable parameters
- Complete combustion calculation using country specific fuel type list
- O2 referencing (normalisation) to user settable value
- Automatic internal test and control of soft- and hardware functions
- Linux OS & large, high-contrast and backlit 7" (840x480) graphical display
- Display with easy, intuitive touch panel and all measured data at one sight
- Graphical data visualization, csv or pdf reporting file
- Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
- 8 channel analog output 4-20mA and 4 channel analog input 4-20mA
- Universal analogue input (AUX socket) with 0-10 V or 4-20 mA signal or K-thermocouple or RS485
- 10.000 data of internal data storage and large data storage on external 4GB USB-stick (MRU design)
- Universal power supply: mains 90-264 Vac/ 105 W (up to 600W with 5m heated sampling line)
- 1 hour Li-Ion 48 Wh battery stand-by operation, with power supply for gas cooler and heated probe filter
- Modern, rugged aluminium enclosure with rubber molded impact protection
Measuring range
- O2: (electrochemical) 0 ... 25,00 %
- CO (H2 compensated): (electrochemical) 0 ... 10.000 ppm / overload up to 20.000 ppm
- CO2: (infrared) 0 ... 5,00 % / overload up to 50,00 %
- NO: (electrochemical) 0 ... 1.000 ppm / overload up to 5.000 ppm
- NO2: (electrochemical) 0 ... 200 ppm / overload up to 1.000 ppm
- SO2 low: (electrochemical) 0 ... 100,0 ppm
- SO2: (electrochemical) 0 ... 2.000 ppm / overload up to 5.000 ppm
- H2S: (electrochemical) 0 ... 2.000 ppm / overload up to 5.000 ppm
- CO low: (electrochemical) 0 ... 500,0 ppm
- CO very high: (electrochemical) 0 ... 2,00 % / overload up to 10,00 %
- CO: (infrared) 0 ... 3.000 ppm / overload up to 30.000 ppm
- CO: (infrared) 0 ... 1,00 % / overload up to 10,00 %
- HC (CH4): (infrared) 0 ... 3.000 / overload up to 10.000 ppm
- HC (C3H8): (infrared) 0 ... 1.000 ppm / overload up to 10.000 ppm
- HC (CH4): (infrared) 0 ... 1,00 % / overload up to 4,00 %
- NO low: (electrochemical) 0 ... 300,0 ppm
- NO2 low: (electrochemical) 0 ... 100,0 %
- H2S low: (electrochemical) 0...50 ppm / overload up to 500 ppm
- Fluegas temperature: 800°C, optionally 1.700 °C
- Combustion air temperature: 0 ... 500 °C
- Ambient air temperature: 0 .. 100 °C
- Differential pressure: -120 ... + 120 hPa
- Flow measurement: 3 ... 100 m/s
Dimensions and other data
- Display: 7“ TFT (800 x 480 px) colour display, backlit, with touch operation
- Dimensions: (W x H x D) 430 x 290 x 150 mm
- Weight: appr. 7,5 kg (with minimal configuration)
- Operating system: LINUX
- Data storage: 10.000 data sets internal and external USB-Stick
- Interfaces: Ethernet, Bluetooth, WLAN, RS485
- Operating temperature: +5 ... +50 °C ; RH up to 95 % not condensing
- Storage temperature: -20 ... +50 °C
- Internal power supply: Li-Ion , 48 Wh, for appr. 1 hr „stand-by“ (optional additional battery, 48 Wh Li-Ion)
- External power supply: 86 ... 265 Vac / 47 ... 63 Hz / 105 W (up to 600 W with heated sampling line)
- Protection: IP20 (or IP42 inside transport case)
