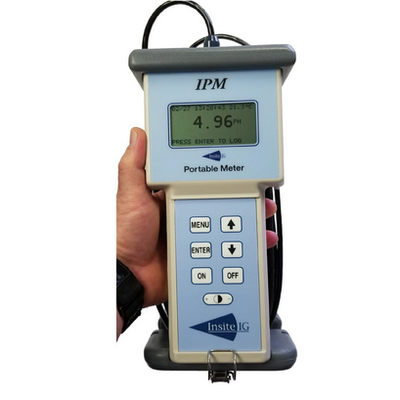

Hydrosurvey - Model IPM -Portable Suspend Solids Meter
The InsiteIG Portable Meter is a unique instrument that combines advanced electronics with exceptional functionality and ease of use. The meter will accept any standard portable DO, SS, pH, or ORP sensor and will automatically configure itself for the correct operation. The quick-disconnect, mil-spec connectors allow for quick sensor swaps. The meter includes a 250 point data logger that records sensor type, sensor reading, date, time, and location. The included Portalog software offers several sort options to customize the downloading and reporting of collected data. The rechargeable batteries allow for 8+ hours of use between charges.
Measuring Range
- PSS = 250 to 30,000 mg/l /
- PSSL = 0 to 1,500 mg/llSI
Accuracy
- PSS = +/- 5% of the reading or +/-100 mg/l, whichever is greater/
- PSSL = +/- 5% of the reading or +/-2 mg/l whichever is greater
- one sensor channel
- automatic sensor configuration
- sensor connector
- memory backup
- backlit graphical LCD display
- UV protected display
- contrast adjustment via keypad
- temp, range: -10°C to 60*C
- watertight enclosure
- 8+ hr. rechargable battery
Output
- USB with provided cable
- PortaLog PC Software
The Portable Suspended Solids Sensors incorporate near infrared technology to provide increased dependability of the reading when color changes in the solids occur. Fast, accurate solids readings. There are two sensor ranges available.
