CRUSHKING - Portable / Tires – Jaw
22” x 36” Jaw Crusher Complete with V-Belt drives, 38” X 12’ Vibrating Grizzly Feeder: Complete with V-Belt drives, 20HP TEFC electric motor (220/440 Volts, 3 phase, 60 cycle.) and adjustable motor base. Bypass chute under grizzly feeder. Heavy Duty fabricated Rock hopper made from plate steel. Low profile design mounted independent of feeder AND removable. Heavy Duty supports and cross bracing. 30” X approx. 30’ Under Crusher front discharge conveyor, Complete with 15HP electric motor, 220/440 Volts, 3 phase, 60 cycle and gear reducer. Heavy Duty impact idlers and super duty slider impact bed at load point under crusher.”Heavy Duty Tandem Axle Chassis”. Approx. 21” I-BEAM construction with heavy duty support legs in front and rear. Fifth wheel pin.
100 HP ELECTRIC motor drive 220/440 volts, 3 phase, 60 cycle and adjustable motor base.
- “Turn-key design” includes a John Deere (or equivalent) diesel power plant with twin disc PTO and adjustable motor base.
- Electrical switchgear mounted on plant and in outdoor NEMA enclosures, including remote stop/start station on operator’s platform for feeder and front conveyor.
- Apprx. 55 KW belt driven generator to power plant mounted electrical components.
- 16’ Long FEEDER in place of the standard 12’ long FEEDER.
- 36” wide main conveyor in place of standard 30” wide.
- Additional Electrical Switchgear including heavy duty soft start for crusher motor, starters and push buttons for each of the components on the plant. Wiring from each of the motors to the panel(s) when panels are plant mounted.
- New Cross Belt Self Cleaning Magnet w/ electric motor mounted over main conveyor.
- Under Grizzly Fines side delivery conveyor. Manual or Hydraulic folding for transport.
- Under Grizzly bypass chute w/flop gate
- (4)Four heavy duty hydraulic stabilizing/leveling legs.

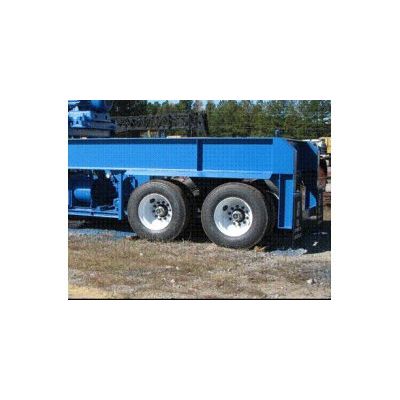

All structural steel welding.Tandem axles with radial tires. Brakes, axles, and heavy duty suspension. Brake lines, glad hands, and mud flaps.“Operators Platform” with access ladder. Catwalks, ladders, and guarding
Primed and painted with rust inhibiting paint.
