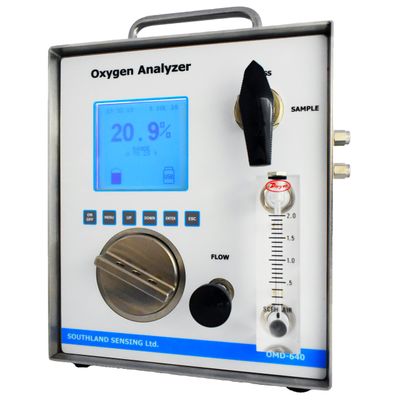

Southland Sensing - Model OMD-640 -Portable Trace Oxygen Analyzer, CE
The OMD-640 oxygen analyzer combines a rugged portable design, integral sample system and updated electronics with SSO2’s precision oxygen sensors. The result is a highly reliable and cost-effective design with easy to use interface. The analyzer comes with 5 field adjustable ranges: 0 – 1 ppm, 0 – 10 ppm, 0 – 100 ppm, 0 – 1000 ppm and 0 – 25%. The LDL of the unit on the lowest 0 – 1 ppm is 0.001 ppm. Custom ranges are available.
The oxygen sensor is based on the galvanic electrochemical fuel cell principal and is manufactured in house under a strict quality procedure. The sensors are self contained and minimal maintenance is required – no need to clean electrodes or add electrolyte. The precision sensors offer excellent performance, accuracy and stability while maximizing the expected life.
The analyzer comes with a built in sample system that includes a front accessible sensor housing, a flow control knob, flow indicator and a 4-way bypass valve. Gas inlet is made via 1/8″ Compression tube fitting.
The electronics are feature packed with an easy-to-use menu interface. The highlight of the advanced set of electronics includes a USB output for data logging. Data logging can be done via a removable USB flash drive and data can be taken in 1 minute intervals. An 8 GB flash drive can store data for 50+ years.
- 0 - 1 PPM Low Range; 0 - 25% High Range
- Large Backlit Display w/ User Friendly Menu
- Data Log via Removable USB Flash Drive
- Integral Swagelok Bypass Valve System
- Continuous Analysis during Charging
- Electrochemical Sensor Technology
- Pipeline leak detection
- Spot Checking Air Separation & Liquification
- Headspace Gas Analysis
- Beverage Grade CO2 Monitoring
- Heat Treating & Bright Annealing
- Inert Gas Welding of Exotic Materials
- Accuracy: < +/- 1% of Full Scale Range*
- Analysis Range: 0-1/10/100/1000ppm/25%
- Battery Indicator: Integrated into Large Display
- Calibration: Periodically
- Data Logging: Removable USB Flash Drive
- Dimensions: 10.9 x 10.0 x 4.9 inch
- Display: Large with Backlight
- Enclosure: Brushed Stainless Steel
- Flow Sensitivity: 0.5 - 5 SCFH
- Gas Connections: 1/8” Compression Tube
- Output (Analog): 0 - 1V DC
- Power:
- Rechargeable Battery
- 100 - 240 VAC AC Adapter
- Pressure: Inlet, 0 - 50 PSIG
- Response Time: T90 in 7 Seconds
- Sample System:
- Flow Control, 4-way sample/
- Bypass Valve, Flow Indicator
- Sensor: TO2-133 Trace O2 Sensor
- Sensor Life: 20 - 25 months
- Temperature: 0 - 50 deg C
- Temperature Compensation: Integral
- Warranty: 12 months
- Weight: 11.75 lbs
- *Accuracy at constant conditions
- ENC-640: Carrying case with foam insert
- CF-640: Coalescing filter with 0.1u filter
- PP-640: Integral sampling pump
- TO2-233: Oxygen Sensor (> 0.5% CO2 present)
