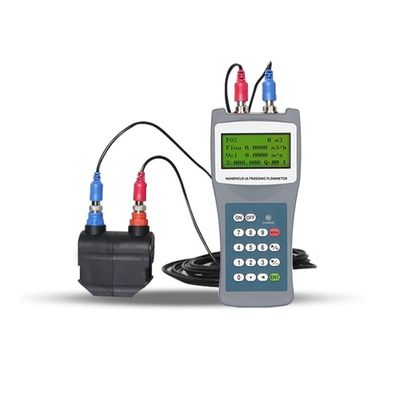

Kaifeng - Model BT -Portable Ultrasonic Flow Meter

FromKaifeng Baite Flow Instrument Co., Ltd.

SHARE

The BT Portable ultrasonic flow meter enable non-contact measurement of liquid flow. The flow is measured by mounting the sensor on the outer wall of the pipe. It has the characteristics of small size, convenient carrying and accurate measurement. Our portable ultrasonic flow meter can do production monitoring, flow verification, and is a necessary tool for real-time flow inspection. Widely used in tap water, heating, water conservancy, metallurgy, chemical, energy and other industries.

Most popular related searches

portable ultrasonic flow meter

ultrasonic flow meter

clamp-on ultrasonic flow meter

portable flow meter

clamp-on ultrasonic flow sensor

clamp-on flow meter

Non-contact measurement, small size and easy to carry.
Clamp on ultrasonic flow meter sensor is easy to install and is suitable for measuring pipes of various sizes.
LCD display can display the instant flow, total flow, flow velocity and working condition.
Rechargeable Power Supply.
Data Storage.
Reduces installation time, improve installation accuracy.
Wide measurement range, measurement range from DN15~ DN6000mm.

Applicable Medium : water, sea water, acid liquid, beer, alcohol, oil and any other liquid that can spread sonic
Working Principle : Ultrasonic time difference principle
Accuracy : Beter than ±1%
Velocity : ±32 m/s
Pipe Size : DN15-6000mm
Temperature : -30~160℃
Signal cable : 5m*2
Communication Interface : RS232
Housing Material : ABS
Security : Setup values Modification Lockout. Access code needs unlocking
Display : 4x8 Chinese characters or 4x16 English letters
Transducers : clamp-on S: DN15-100mm; M: DN50-700mm; L: DN300-6000mm
Power Supply : 3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation.100V-240VAC for the charger
Data Logger : Built-in data logger can store over 2000 lines of data
Pipe Material : Steel, Stainless steel, Cast iron, copper, PVC, aluminium, FRP etc. (liner allowed)
Standard Configuration : Host, signal cable, data cable, charger, standard probe, fasteners, coupling agent, tapeline, aluminum alloy case
