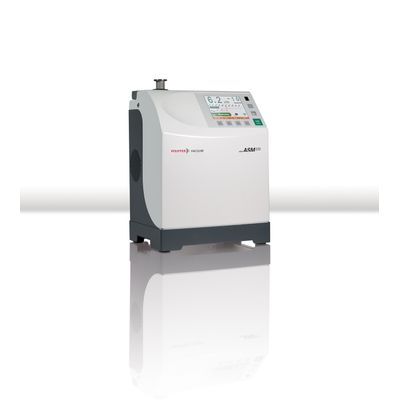

ASM - Model 310 -Portable Vacuum Leak Detectors
Oil free pumping system, roughing capacity 1.7 m3/h. Ultralight, only 21 kg (46 lbs) and easy to move. Large bright color touchscreen with graphics functionality. Intuitive and customizable menu. Integrated SD memory card for recording and downloading capacities.
Most popular related searches
vacuum leak detection
leak detection
helium leak detection system
helium leak detection
helium sniffer
pump system
portable leak detection
sniffer
oil leak detection system
H2S
- Backing pump: with oil free backing pump
- Backing pump capacity: 1.7 m3/h
- Detectable gases: 4He, 3He, H2
- Dimensions (L x W x H): 350 x 254 x 414 mm
- Flange (in): DN 25 ISO-KF
- I/O interface: Digital, Analog (mantissa, exponent)
- Interface: RS-232
- Maximum inlet test pressure: 15 hPa
- Minimum detectable leak rate for helium (sniffing leak detection): 1 • 10-7 hPa l/s
- Minimum detectable leak rate for helium (vacuum leak detection): 5 • 10-12 hPa l/s
- Noise level: < 45 dB (A)
- Operating temperature: 10 - 40 °C
- Pumping speed for He: 1.1 l/s
- Response time (Sniffing leak detection): < 1 s
- Start-up time (20°C) with calibration: <3.5 min
- Start-up time (20°C) without calibration: < 2 min
- Supply: 100-240 V, 50/60 Hz
- Test method: Vacuum and sniffing leak detection
- Type: Mobile
- User interface: Graphic color touch screen (detachable)
- Weight: 21 kg
