Madvac - Model LP61-G -Portable Vacuum Litter Collector System

For hard-to-reach soiled areas such as windblown trash at landfill/transfer station fence lines, parking lots, parks, cycling trails and industrial sites there’s nothing quite like the Madvac LP61G!

• Vacuums: cans, bottles, newspapers, plastic and paper bags as well as other trash
• Compact, lightweight and easy to use
• Fork lift ready
• Easily transported using; a standard pick-up with 6-ft bed, all terrain vehicle or optional tow behind trailer conversion with standard hitch
• 8-inch (203 mm) diameter hose
• Patented straight-through suction compacts litter approx. 80 gallon (300 L)
• Quick-change reusable-type collector bag
• Skid mount to trailer option in 30 minutes

• Industrial, Commercial & Institutional (ICI) Ground Care
• City Parks & Roadside Clean-Up
• Large Fleet Operators (Waste & Transport)
• Landfill & Transfer Stations

• Common Technical Specifications:
• Fuel Tank : 6 Gal. (9.5 L)
• Autonomy : 5.0 hours
• Litter tank capacity : 80 Gal. (300 L)
• Airflow : 8,400 ft/min (237,8 M/min)
• Hose : 8 in. (203mm) diameter
• Collection system type : through with approx. 2 to 1 compaction ratio
• Bag : Flow Quick change reusable type bag
• Instruments : Hour, fuel, emergency stop button option, strobe option
• Engine Data :
• Model : HONDA TWIN GX630 (four stroke)
• Displacement : 0.630 L
• Gross rated power : 15.5 kW (20.8 HP)
• Legislation Compliance : Honda Compliance (Californa Spec)

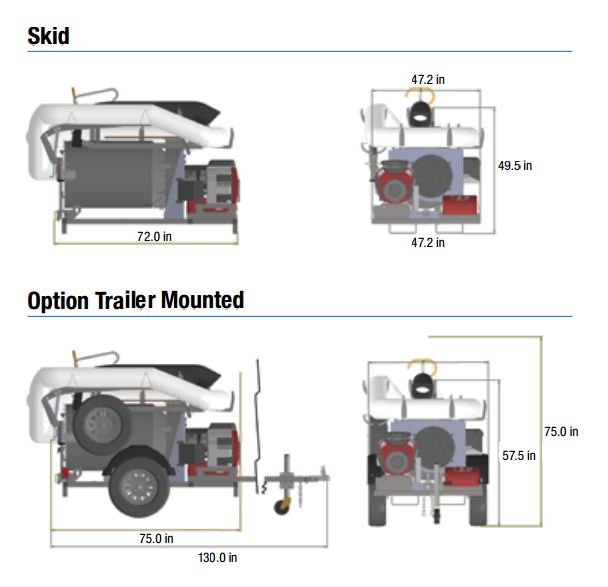

• Skid:
• Length : 72 in. (1828 mm)
• Width : 47.2 in. (1198 mm)
• Height : 49.5 in. (1257 mm)
• Weight : 750 lbs (340 Kg)
• Option Trailer Mounted :
• Wheels : (2) 175/80 R13, radial 4 seasons
• Lighting : Complete signaling package
• Length : 130 in. (3300 mm)
• Width : 47.2 in. (1198 mm)
• Height : 57.5 in. (1460 mm)
• Weight : 952 lbs (425 Kg)
