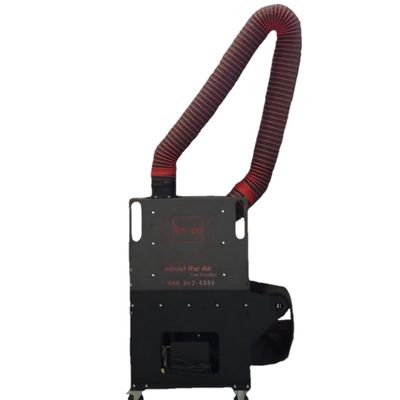

Lev-Co - Model P2D2-R2 - 1800 CFM -Portable Vehicle Exhaust System

The P2D2 is an "All-in-one"design with the purpose to capture 99%+ of all air-born emissions "at-Source"before the emissions reach the operators` breathing zone. This unit is ideal for capturing smoke and fumes for cars, busses, motorcycles, gas & diesel trucks & heavy equipment.

The system is suitable for servicing entire facilities, all bays (extra door ports may be required), and servicing both overhead and under-carriage exhaust pipes. The unit transports well to and from job sites, under the garage door, or through door/wall exhaust. This portable unit is centered around one-person deployment and operation, allowing the operator to position the nozzle on an OVERHEAD stack without the use of a ladder.

This Plug & Go unit has a sturdy trolley that allows for storing all ventilation components, easy-to-store exhaust hose, and locking casters that ensure the base unit stays in place during use. The powerful exhaust fan removes exhaust gases directly into the atmosphere, with a typical flow rate between 100CFM and 1800CFM depending on the fan size for the system.

Main options include:

• Exhaust Hose: Up to 100 feet length and 2500 degrees F. Temp. rating
• Exhaust fans ranging from 1.5HP to 20HP
• Overhead Stack Adapter
• Variable Frequency Drive

• Portable & Easy to position - 6 Heavy-duty casters (2 straight, 4 swivel)
• “All-in-one” design – “on-cart” storage for all hoses, hoods, etc.
• All steel heavy duty construction - 3/14/16 ga.
• Spark Proof design and construction
• Environmentally friendly VFD control – Variable exhaust rate ensures energy-saving efficiently
• Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
• Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
• Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
• Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
• Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
• Equipment over 500HP - Call Lev-co for exact product selection

• All-in-one:The whole assembly has the ability to store everything related to the unit, making teardown and setup times much shorter, as well as taking up less storage space
• Maneuverable:Ball-bearing castors allows for easy movement by a single operator
• Point-source extraction:25 feet of flexible non-kink hose allows extraction from awkward locations with minimal setup
• Energy-saving:VFD technology means that you can program the suitable flowrate for any application, which is energy-saving, and efficient
• Distance coverage:With the use of exhaust up to 100 feet long, point-source extraction can be achieved from almost anywhere within a 100 foot distance to outdoor access

Top 5 contaminants/processes/applications:

• Diesel Exhaust Fumes
• Car Exhaust Fumes
• Welding Fumes
• Smoke
• Chemical Fumes

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

P2D2-R2-1.5HP-1
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850 hose 200 mmØ (8)
• 1.1 KW (1.5 hp) fan
• 115V/1/60
• 12 Amp
• Electric switch with overload protection bracket
• 15` Cable and plug
• ESA (Electrical safety Authority) approved
• 5" dia. straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8") diameter layflat 600 degree hose.

P2D2-R2-1.5HP-2
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850 hose 200 mmØ (8)
• 1.1 KW (1.5 hp) fan
• 460V/3/60
• 12 Amp
• Electric switch with overload protection bracket
• 15` Cable and plug
• ESA (Electrical safety Authority) approved
• 5" dia. straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8) diameter layflat 600 degree hose.

P2D2-R2-1.5HP-3
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850 hose 200 mmØ (8)
• 1.1 KW (1.5 hp) fan
• 575V/3/60
• 12 Amp
• Electric switch with overload protection bracket
• 15` Cable and plug
• ESA (Electrical safety Authority) approved
• 5" dia. straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8) diameter layflat 600 degree hose.

P2D2-R2-3HP-1
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850° hose 200 mmØ (8)
• 2.2 KW (3 hp) fan (P-154 Fan)
• 115-230V/1/60
• Electric switch with overload protection bracket
• 15` Cable
• ESA (Electrical safety Authority) approved
• 5" straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8") diameter layflat 600 degree hose.

P2D2-R2-3HP-2
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850° hose 200 mmØ (8)
• 2.2 KW (3 hp) fan (P-154 Fan)
• 230v-460v/3/60
• Electric switch with overload protection bracket
• 15` Cable
• ESA (Electrical safety Authority) approved
• 5" straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8") diameter layflat 600 degree hose.

P2D2-R2-3HP-3
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850° hose 200 mmØ (8)
• 2.2 KW (3 hp) fan (P-154 Fan)
• 575v/3/60
• Electric switch with overload protection bracket
• 15` Cable
• ESA (Electrical safety Authority) approved
• 5" straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 200 mm (8") diameter layflat 600 degree hose.

P2D2-R2-5HP-2
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850 hose 200 mmØ (8)
• 5 hp fan
• 230,460,/3/60
• Electric switch with overload protection bracket
• 15` Cable and plug
• ESA (Electrical safety Authority) approved
• 5" straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 16" diameter layflat 600 degree hose.

P2D2-R2-5HP-3
Portable P2D2 base unit which comes with the following components:

• 3M (10`) Flexi-II extraction arm
• 850 hose 200 mmØ (8)
• 5 hp fan
• 575V/3/60
• Electric switch with overload protection bracket
• 15` Cable and plug
• ESA (Electrical safety Authority) approved
• 5" straight and locking caster
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 14" diameter layflat 600 degree hose.

P2D2-R2-10HP-2
Portable P2D2 base unit which comes with the following components:

• NOW COMES COMPLETE WITH HOSE RECOILER
• 3M (10`) Flexi-II extraction arm
• 1500° hose 200 mmØ (8)
• 7.5 KW (10 hp) fan
• 230-460V/3/60
• Electric switch with overload protection bracket
• 15` Cable, switch, overload and twist-lock plug
• ESA (Electrical safety Authority) approved
• Heavy Duty locking/swivel casters
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel

* Heat dissipation nozzle/hood for vertical stacks

P2D2-R2-10HP-3
Portable P2D2 base unit which comes with the following components:

• NOW COMES COMPLETE WITH HOSE RECOILER
• 3M (10`)High Temperature Flexi-II extraction arm
• 1500° hose
• 7.5 KW (10 hp) fan
• 575V/3/60
• Electric switch with overload protection bracket
• 15` Cable, switch, overload and twist-lock plug
• ESA (Electrical safety Authority) approved
• Heavy Duty locking/swivel casters
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel

P2D2-R2-20HP-2
Portable P2D2 base unit which comes with the following components:

NOW COMES COMPLETE WITH HOSE RECOILER

• 3M (10`) Flexi-II extraction arm
• 1500° hose 250 mmØ (10)
• 20hp fan
• 230-460V/3/60
• Electric switch with overload protection bracket
• 15` Cable, switch, overload and twist-lock plug
• ESA (Electrical safety Authority) approved
• Heavy Duty locking/swivel casters
• Handholds that double as lifting points when using an overhead crane
• Safety rubber covers on all hose clamps wheels and exhaust hose
• Positioning telescopic pole for positioning hood over Vertical tailpipe
• 7.5M (25`) of 350 mm (14) diameter "layflat" 1500 degree exhaust hose and recoil/storage reel

* Heat dissipation nozzle/hood for vertical stacks

• Hose with temp range up to 850°F (455°C)
• Over-head Stack adapter - High Temperature Rubber
• Variable Frequency Drives
• Accessories
