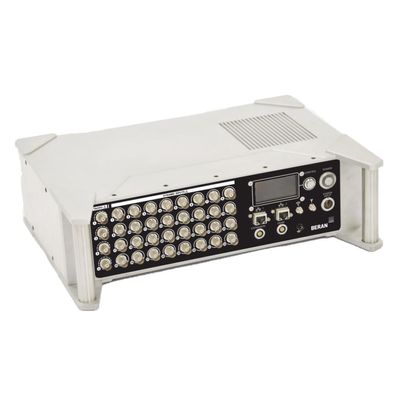

PROTOR-mobile - Portable Vibration Condition Monitoring
PROTOR-mobile is the fifth generation of multi-channel, portable system developed jointly by Prosig and sister company, Beran. It offers unrivalled capability in a compact form factor weighing less than 7kg with powerful diagnostic capability.
Designed for rotating machinery: -
- Steam Turbines
- Gas Turbines
- Hydro Turbines
- eedwater Pumps
- Gearboxes
- Machinery requiring continuous monitoring
- Plant Commissioning
- Return-to-service
- Balancing
- Troubleshooting
- Unattended diagnostics
Up to 32 parallel dynamic channels, 4 speed signals, 16 DC process channels
24-bit ADC resolution
Machine operating speeds from 0 rpm to 50,000 rpm
Support for Acceleration, Velocity, Displacement or Dynamic Pressure
Simultaneous acquisition of vibration and process data
Integral ICP support and Hi and Low pass filters
50kHz measurement bandwidth per channel
Multiple FFT line resolution, programmable FFT bands
Up to 16 harmonic orders, sub-synchronous levels, intra-harmonic level, gap
Assignment of dynamic channels to multiple speed signals
RPM and Time based acquisition control plus configurable event conditions
Overlay real-time run-up / rundown files with historic baseline reference
File export into CSV format
Interface to OSI Soft™ PI and third party applications using OPC interface
Two high speed GBit LAN ports and remote 4G access
Less than 7kg with rugged case and lightweight padded bag carry options
