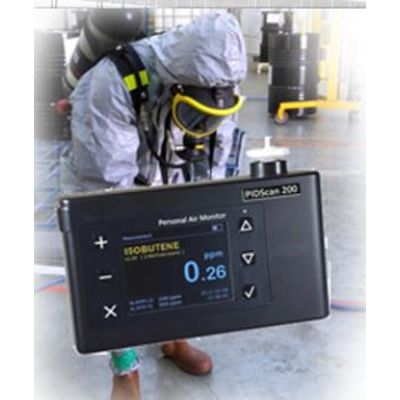

GDS -Â Model PIDScan 200 -Portable VOC Detector
PIDScan 200 series is the latest range of portable PID detectors that are highly sensitive to VOC measurement and humidity resistance even up to 99% RH. They are incorporated with built-in humidity and temperature sensors that provide real-time humidity and temperature compensation for more reliable and repeatability in VOC detections. With various options available for you to select from, PIDScan series 1000 are the most compact VOC monitors available in the market today, that provide you with detection range capable from 1 ppb to 10,000 ppm.
-
Fast response and recovery during measurement.
-
Large TFT colored display; comfortable reading even in low lighting.
-
Large data memory more than 60,000 records; for both automatic and manual log feature.
-
Data-download to computer via USB cable.
-
Comes with free interactive user-configurable software.
-
User customized input correction factors for desired VOCs.
-
GPS receiver (option) to allow measuring data to be assigned to specific location using the position data.
-
Easy automatic calibration using smart processor.
Automatic ranging
ease of use during measurement over wide measuring range from 10 ppb to 20,000 ppm (gas dependent)
Unique ceramic-glass PID sensor
has proven to be more stable and longer sensor life than any conventional PID lamps
Built-in temperature and humidity sensors
to ensure accurate and real-time compensation measurements under all weather conditions
300+ VOCs built-in library
comprehensive library of VOCs ... you almost never miss a thing
Sensors Type Range / Resolution
PID (10.6 eV) 0 ppm-4000 ppm / ppm
0 ppm-10,000 ppm / ppm
0 ppb-10,000 ppm / ppb, ppm
* with Temperature and Humidity compensation on board
* other lamps available on request
Response factor Built-in library for up to 70 gases
Gas library extended to 250+ gases
Able to edit and customize response factor to new VOCs in library
Data-logging User downloadable data-logger
Communication PC to instrument via USB; GDS-Scan software for instrument configuration and data handling
Upgradeable Able to upgrade to higher version of PIDScan series
Size L165 mm x W67 mm x D45mm
Weight approx. 500 g
Measurement ppm
Response time T90 < 3 sec
Pump built-in
Alarms audible and visual alarm (95 dB and LEDs)
high alarm (adjustable)
low alarm (adjustable)
STEL and TWA alarms (adjustable)
additional diagnostic alarms
alarm and display for low battery status
low flow alarm
vibrator alarm
calibration due alarm
Calibration Automatic 2-point field calibration for zero and span
Auto zero Yes
Battery rechargeable Li-ion battery pack
drop-in charging cradle
Operation Time Up to 16 hours continuous operation
Display Large LCD 128 x 64 pixels with backlight
Keypad Three tactile button operation
Readout Instantaneous VOC gas values
TWA and STEL values for VOC readings
High and Low values
Next calibration date
Real-time clock
Battery status
Tagging Add, remove and edit tags on measurements
Op. Temperature -20 deg C to +50 deg C
Op. Humidity 0%RH to 95%RH (non-condensing)
Approval Ex ib d IIC T4 (pending)
IP rating IP65
EMI/RFI Compliance to EN 50270 (pending)
Communication PC connectivity via USB and docking station
using GDS-Scan PC software
