Universal Refiner Corporation (URC)

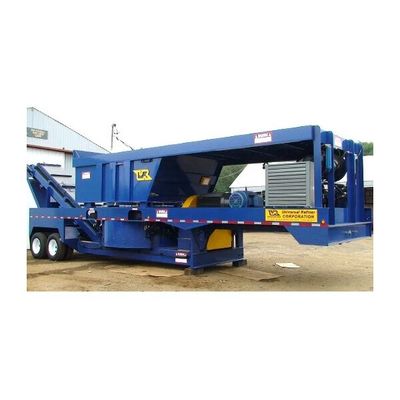

URC - Model R-MAG 82 (PDR-82-600HP) -Portable Wood Waste Grinder
This model is based on the foot print of the PDR-70 contender, but is built heavier, has a larger hopper and infeed and other improvements. It has abilities similar to the earlier PDR-80 Contender models, but at a lower cost. Machine is street legal!
Most popular related searches
- Engine: 520 HP
- Width: 100 INCHES
- Height: 13` 4"
- Length: 37 FEET
- Weight: 50,000 LBS
- Hyd. Tank: 150 GALLON
- Water Tank: 150 GALLON
- Fuel Tank: 350 GALLON
- Hopper Size: 160" x 100" x 76"
- Hopper Capacity: 19 CUBIC YD
- Conveyor Discharge: 30" x 21`
- Typical Production: UP TO 80 TPH
Pan
- Base Diameter: 80 INCHES
- Wall Thickness: 1/2 INCH
- Floor Thickness: 3/4 INCH
- Pan Drive: Cushioned Hyd; Hydraulic; Radio Remote Auto Reverse
Screens
- Size: 1 1/2 - 6 INCH
- Area: 3800 SQ IN
- Warranty: 1 YEAR
Cutting Mill
- Rotor Diameter: 45 INCHES
- Cutting Width: 40 INCHES
- Rotor RPM: 782
- Blade Holders (Hammer): 10
- Blade Holder Warranty: 1 YEAR
- Cutter Mill Drive
- Fluid Coupling & URC Heavy Duty Drive (Kevlar)
