Universal Refiner Corporation (URC)
Products
URC - Model R-MAG 109 (PDR-109-800HP) - ...

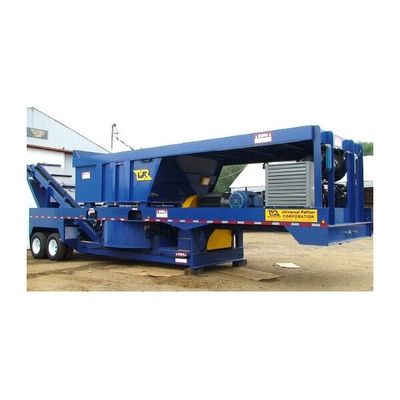

URC - Model R-MAG 109 (PDR-109-800HP) -Portable Wood Waste Grinder

This model is based on the foot print of the PDR-96 Contender, but is larger, stronger, has a larger hopper and infeed and is more productive than anything we have ever built. It is 10` wide and requires permits.

Most popular related searches

Engine: 800-1150 HP
Width: 10 FEET
Height: 13` 4"
Length: 46 FEET
Weight: 82,000 LBS
Hyd. Tank: 150 GALLON
Water Tank: 150 GALLON
Fuel Tank: 300 GALLON
Hopper Size: 14` x 10` x 9`
Hopper Capacity: 31 CUBIC YD
Conveyor Discharge: 42" x 21`
Typical Production: UP TO 120+ TPH

Pan

Base Diameter: 108 INCHES
Wall Thickness: 5/8 INCH
Floor Thickness: 3/4 INCH
Pan Drive: Cushioned Hyd; Hydraulic; Radio Remote Auto Reverse

Screens

Size: 1 1/2 - 6 INCH
Area: 6870 SQ IN
Warranty: 1 YEAR

Cutting Mill

Rotor Diameter: 65 INCHES
Cutting Width: 54 INCHES
Rotor RPM: 588
Blade Holders (Hammer): 18
Blade Holder Warranty: 1 YEAR
Cutter Mill Drive: Fluid Coupling & URC Heavy Duty Drive (Kevlar)

URC - Model R-MAG 109 (PDR-109-800HP) -Portable Wood Waste Grinder

Specifications
