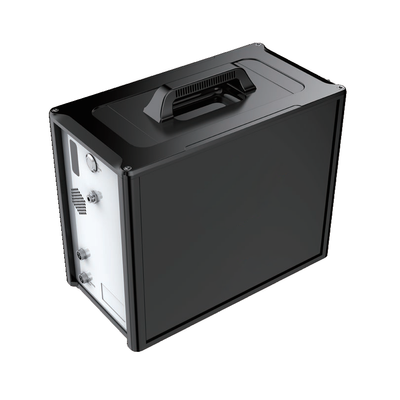

Zetian - Model PZ2200 -Portable Zeeman Cold Atomic Absorption Mercury Analyzer
The PZ2200 is a lightweight, high-precision mercury analyzer that utilizes high-frequency Zeeman background correction technology (ZAAS-HFM). Based on the principle of mercury vapor absorption at the 254?nm resonance line, it continuously draws gas samples into the detection unit using an extractive sampling system and a maintenance-free diaphragm pump. By measuring the attenuation of UV light, it accurately determines mercury concentration in ambient air at levels above 0.2?μg/m³. Designed for indoor and outdoor continuous monitoring, it’s widely used in industrial hygiene, ecological surveillance, process control, and scientific research.
Most popular related searches
low pressure mercury lamp
real-time gas monitoring
mercury analyzer
biological sample analysis
gas sampling analysis
flue gas detection
emergency spill response
atomic absorption spectrometer
gas sampling
ambient air mercury
- Advanced High-Frequency Zeeman Background Correction: Polarized Zeeman quasi-dual-beam with dual detectors
- ensures high sensitivity and strong anti-interference capability.
- Direct Extractive Sampling: Measures mercury directly without the need for gold amalgamation, reagents, or carrier gases.
- Modular Portable Design: Suitable for both laboratory and field operations.
- Fully Automated Analysis with Built-In Calibration: Enhances stability and ease of use.
- Dual Power Supply Modes: Supports internal battery (12-hour runtime) and vehicle power for extended outdoor operation.
- Real-Time Gas Monitoring: Fast response time for immediate mercury concentration readings.
- Multi-Sample Compatibility: Equipped with interchangeable modules for solid, liquid, and gas sample analysis.
- Large-Capacity Data Logging: Automatically stores up to 120 hours of continuous monitoring data for complete traceability
- Atmospheric Mercury Monitoring
- Water Analysis
- Soil Testing
- Flue Gas Detection
- Emergency Spill Response
- Hazardous Waste Assessment
- Biological Sample Analysis
- Environmental Surveillance
- Measurement Method: Atomic Absorption Spectroscopy
- Range: 0-2000μg/m³
- Injection Method: Extractive
- Light Source: Low-pressure mercury lamp
- Wavelength: 253.6nm
- Detector: Silicon UV photodetector
- Stability: RSD≤3%
- Detection Limit: 0.2μg/m³
- Air Pump Flow Rate: 5L/min
- Internal Power Supply: 24VDC
- External Power Supply: 220VAC,50/60Hz
- Power Consumption: 30W
