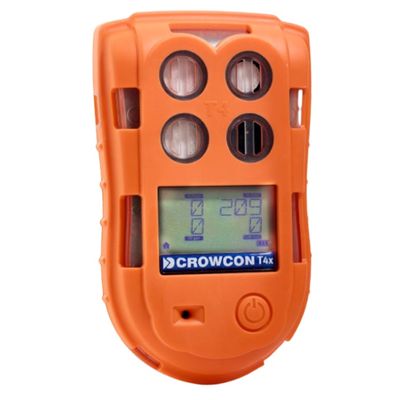

Sensitron - Model T4x -Portables Multi-Gas Detectors
T4x is Crowcon’s zone 0 approved personal protection solution for detecting the four most common gas hazards: Carbon Monoxide (CO), Hydrogen Sulphide (H2S), Flammable Gases (MPS), Oxygen Depletion (O2). Now with improved detection of pentane, hexane and other long chain hydrocarbons. Offering you compliance and low cost of ownership in a simple to use solution. The large single button and intuitive menu system allows T4x to be operated wearing gloves with minimal training.
T4x is durable by design and includes an integrated rubber boot as standard. An optional clip-on filter cover, which is easily removed and replaced, ensures sensors are protected in the dirtiest environments. Drop tested to 4m and well protected from water ingress through IP65 and IP67 certification, T4x allows uninterrupted working in the most demanding environments.
- Size: W135 x H80 x D35 mm (5.3 x 3.1 x 1.4in)
- Weight: 282g (9.9oz)
- Durability: Drop tested to 4m onto concrete
- Alarms:
- Audible >95dB
- Bright red/blue visual LEDs
- Integrated vibrating alert
- Display: Front mounted, backlit. Optional 180° flip for easy viewing whilst worn
- Logging: 130 hours of data logging; Up to 3500 events
- Battery:
- Rechargeable Li-ion
- Up to 18 hour typical runtime (Standard sensor option)Up to 35 hours runtime (MPS and LLO2 options)
- 5.5 hour recharge
- Operating temperature: -20°C to +55°C (-4°F to +131°F)*
- Humidity: 10 to 95% RH @ 40°C non-condensing
- Ingress protection: Independently tested to IP65 and IP67
- Approvals:
- ATEX and UKCA II 1 G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +55°C (T4 Type 1)
- IECEx Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +55°C (T4 Type 1)
- UL and cUL: Use in hazardous locations Class 1 Div 1 groups A,B,C,D only as to intrinsic safety
- MED Directive 2014/90/EU (Pending)
- Interface: USB communications lead
- Accessories:
- Included with T4:
- Integrated alligator clip and tethering loop
- Bump/Calibration plate
- Available separately: Single unit cradle charger, 10 unit cradle charger; Vehicle charger Clip on filter plate for sensor protection in dusty environments I-Test automated bump and calibration station
