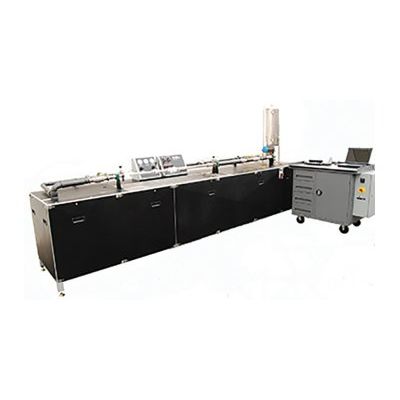

Flow Dynamics - Model PDLC 60 -Positive Displacement Liquid Calibrator
The Positive Displacement Liquid Calibrator (PDLC 60) provides calibration for multiple meters 1` or smaller. The PDLC series calibrators all have automatic temperature control comprising of a fluid heater plus connections for a chilled water flow loop. The primary measuring tube has ample length to facility multiple data points in a single stroke. All PDLC calibrators have a test section pan to trap fluid drainage during meter changes and a pump with filters to return the fluid back to the reservoir. Close coupled valves in the test section reduce the amount of fluid spillage.
Most popular related searches
digital temperature controller
chilled water
isolation valve
industrial testing
turbine flow meter
flow calibration
temperature sensor
control valve
valve testing
check standard
- The precision cylinder on the PDLC ensures ample volume to capture stable data at max flow rate
- Has isolation valves in the test section, which reduce the amount of fluid loss when meters are installed or removed
- An internal pump is provided to simplify filling and draining the calibrator
- The system automatically cycles the fluid for mixing of fluids
- Has separate temperature sensors for the cylinder and test section to correct for changes in volume as recommended by NIST
- Have long test sections that can accommodate two turbine flowmeters with flow straighteners in tandem. This is the recommended set-up for a NIST roundrobin calibration check
- Comes standard with frequency, voltage and current inputs
- Has three rate-control valves for course, medium and fine flow rate control
- Provides a filtered pump to return fluid from the test section pan to the reservoir
- Provides automatic temperature control using a fluid heater plus connections for a chilled water flow loop
- The run and return valves are activated automatically by software commands
- Size : Up to 1 in.
- Temperature Range : 40…140 °F
- Flow Range : 0.001…10 gpm
- Pressure Range : Up to 120 PSI
- Accuracy : ±0.05 %
- Application Examples : Flow Calibrations on Various Flowmeters
- Industries : Test & Measurement
