Ampco-Pumps - Model ZP2 Series -Positive Displacement Pumps
The ZP2 Series with its stainless steel gearcase, like all Ampco positive displacement pumps, is built for CIP-ability with enclosed rotor nuts. It is designed to withstand higher pressures with its larger 17-4ph stainless steel shafts. In fact, the ZP2 is capable of withstanding pressures of up to 500 PSI and is 3A Certified.
Most popular related searches
positive displacement pump
displacement pump
sanitary centrifugal pump
circumferential piston pump
pressure relief valve
sanitary positive displacement pump
centrifugal pumping
centrifugal pump
stainless steel retainer
relief valve

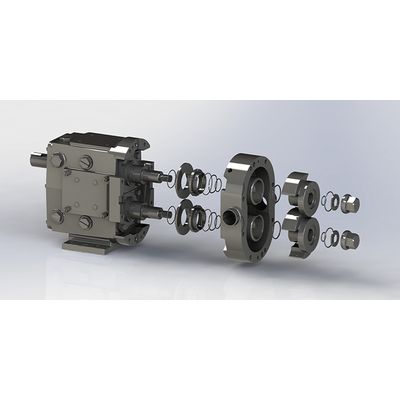

Circumferential Piston Pump Features
- 304 Stainless Steel Gearcase
- Alloy 88 Non-Galling Rotors
- Stainless Steel Bearing Retainers
- 17-4ph Shafts – more than 3 times the yield strength of 316
- Helical Gears
- 4-Way Mounting
- Multiple Threaded Grease Zerks
- Gasketed Stainless Steel Clean-Out Plugs
- Stainless Steel Splash Plate
ZP2 Series Performance Overview
- Models: 16
- Max. Discharge Pressure: 500 PSI / 34 BAR
- Max Flow Rate: 452 GPM / 103 m3/hr
- Max Viscosity: 1,000,000 cP
- Seal Specifications: 2 Seal Options
-
304 Stainless Steel Gearcase Standard on All Models
-
Ease of Maintenance and Parts Interchangeability
-
Enhanced Shaft Design for Higher Pressure Capabilities
-
3A Certified
-
Standard Delivery is Only 2 Weeks
-
Available Options – Rectangular Inlets Pressure Relief Valves, Heating Jackets, and Optional Rotor Designs
-
Designed, Manufactured and Assembled in the U.S.A.
