BEMA - Model 23800 -Potato Silo With Bottom Screw Conveyors
FromBema A/S

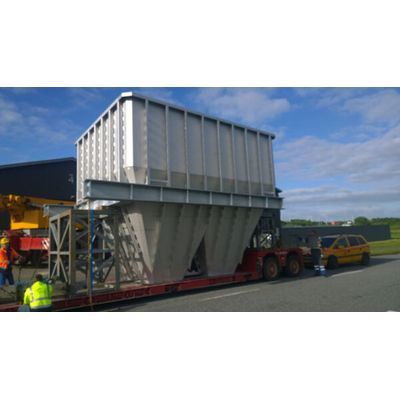

100 m3 silo with bottom screw conveyors. The silo is designed for potatos. The potatos is filled in the top and drawn out in the bottom. The bottom has 4 screw conveyors - each 500 mm. in diameter. The bottom screws deliver the potatos to 4 transportation screws that moves the potatos to the next step in the starch factory.
Most popular related searches
- The silo is supported by a HEB-450 support beam that is put onto a system of load cells
- The bottom screws are designed specially to sit in a heavy loaded bin - the bottom is re-inforced with steel plates
- All material is manufactured in stainless steel 1.4301/AISI-304
- BEMA has solved all tasks including design, static calculations, manufacturing, transportation and assistance during installation and test run
- Product type: Screw conveyor, Silo / bin
- Industry: Food industry, Process industry
- Transported material: Bulk material
- Applied steel in product: Stainless steel
- Surface treatment: Stainless steel – acid pickled
