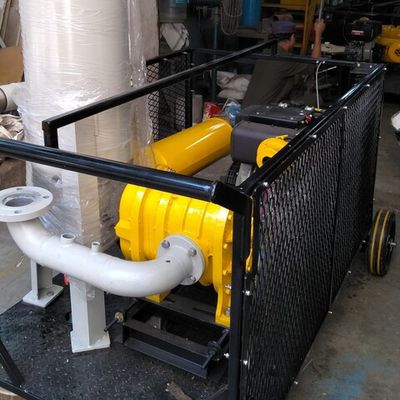

Potential - Rotary Lobe Driven Pump Skid System
Rotary Lobe Pumps are self-priming, valve less, positive displacement pumps. The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation- depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.
Mobile units are used for a wide variety of pumping tasks. Whether in oil refineries, chemical plants, sewer rehabilitation or flooded areas -all mobile units have one thing in common: they are manufactured specifically for their respective areas of application.
- Pump Type: Rotary Lobe Pump
- Pump Discharge Size: 2" to 6" BSP
- Discharge Capacity: 20 to 50 m3/hr max
- Pump Drive: Hydraulic or Electric Motor
- Lobe MOC: EPDM Rubber
- Casing MOC: Cast Iron / Aluminium / Stainless Steel
- Solid Handling Capacity: 20mm max
- Reliable, powerful and robust.
- Customizable.
- Compact design.
- Capable of solid handlings.
- Self-priming pump.
- Maintenance free mechanical seal.
- Oil Spill Response
- Oily Water Treatment
- Oil & Gas
- Power
- Steel
- Wastewater & Water
