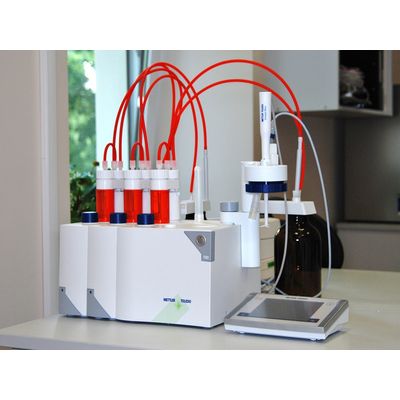

Mettler Toledo - Model T90 -Potentiometric Titration Station
Automated titration instrument that solves complex tasks easily and efficiently. Besides the many advantages of the Titration Excellence line such as One Click® Titration, Plug & Play, method database, T90 offers a number of other important feature.
Most popular related searches
titration system
ion-selective electrode
potentiometric titration system
titration
pH electrode
titration method
selective electrode
ion-selective
magnetic stirrer
automatic titration
Configuration:
- T90 terminal with pH board, integrated burette drive, magnetic stirrer;
- 2 additional burette drives;
- Ca2+ ion selective electrode;
- pH electrode for titration in non-aqueous media;
- pH electrode for direct pH measurement and titration in aqueous media with low ion concentraton;
- Combined platinum ring electrode for redox titration.
Functions:
- Parallel titrations;
- Automatic calculation of results;
- Titration in series;
- Conditions in titration method functions;
- Syncronisation of parallel analyses;
- Computer connectivity for easy processing of results.
Technical specification:
- Potentiometric sensor inputs
- Measurement range: ± 2000 mV
- Resolution / Error limit: 0,1 mV / 0,2 mV
- Polarized Sensor input
- Measurement range Ipol/Upol: 0 … 2000 mV / 0 … 200 μA
- Resolution Ipol / Upol: 0,1 mV / 0,1 μA
- Error limit Ipol / Upol: 2,0 mV / 0,2 μA
- Current source range Ipol / Upol: 0-24 μA AC / 0 – 2000 mV AC
- Current source resolution Ipol / Upol: 0,1 μA / 0,1 mV
- Temperature sensor input PT1000
- Measuring range: -20 … 130 °C
- Resolution / Error limit: 0,1 °C / 0,2 °C
- Burette drive
- Burette resolution (10 mL): 0,5 μL (1/20000 of the burette volume)
- Error limit: 0,2 % of the burette volume
- Resolver resolution: 0,0625 % of the burette volume
- Filling time and discharge time: 20 s at 100 % filling rate
