Power Pro ESP - Low-Flow Electric Sampling Pump

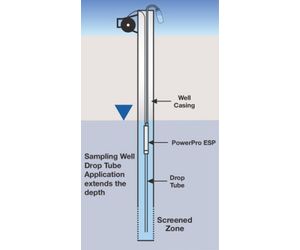

Unique, All-in-one Design Senses Water at the Pump. QED’s new Power Pro ESPTM low-flow electric sampling pump (patent pending) has an all-in-one design with user friendly controls built into the reel. You won’t need a heavy AC generator – just run the Power Pro off your vehicle’s battery, or go mobile in the field using a portable 12 VDC battery. The ESP Communications ProtocolSM provides simple pump operation with sophisticated control. The In-Water Sensor lights up when the pump is submerged, making it easy to position the pump in the well. The Run-Dry Protection limits drawdown and prevents damage to the motor and seal.
With its variable-speed brushless motor and revolutionary high-efficiency impeller, the Power Pro delivers a new generation of performance. This unique combination consumes 50-75% less power (based on manufacturer`s published specifications) which means less heat and lighter, more flexible power supply options. Lower power consumption lets you sample more wells than with any other electric sampling pump.* The whole system weighs only 32 lbs.
(*Based on same operating conditions and battery capacity.)
- Unique, all-in-one design
- No need for an external AC generator
- Variable-speed brushless motor
- System can weigh up to 35% less than a traditional pump and controller
- Controls built right into the reel
- Run the Power Pro off your vehicle’s battery or go mobile in the field by using a small, portable battery
- Uses 50-75% less power
- Less heat, and lighter, more flexible power supply options
- Model Number: EP150
- Flow (max): 1.1 gpm (4.2 Lpm)
- Flow at max depth: 0.5 gpm (1.9 Lpm)
- Diameter: 1.8 in. (4.6 cm)
- Length: 16.6 in. (42.16 cm)
- Pump Weight:
- 5.3 lbs. (2.40 kg)
- System Weight:
- 31.8 lbs. (14.42 kg)
- Power Consumption: 35-75 watts (typical)
- Supply Voltage: 12VDC
- Current Draw: 3-6 amps (typical)
- Cable Insulation: Polyurethane
- Discharge Port: 1/4” FPT
- Discharge Tubing: 1/2” OD (1.3 cm) x 3/8” ID (1.0 cm) and
- 3/8” OD (1.0 cm) x 1/4” ID (0.6 cm)
