Power Test - Model PTX -Complete Water Brake Engine Dyno System

SHARE
The PTX Complete Engine Dyno System by Power Test is designed for reliable engine certification testing across diverse sectors such as on-highway, military, and construction applications. Central to this system is the Power Test W-HS Series water brake engine dynamometer, renowned for its reliability and cost-effectiveness over the long term. The system includes essential components for engine mounting, connection, and cooling, facilitating streamlined testing processes. It supports a maximum horsepower range of 350-1000 hp, with a top engine speed of 6,000 rpm and a torque capacity reaching 3,743 lb-ft. This ensures robust performance validation for various high-demand applications. The PTX system is tailored for adaptability and efficiency, making it well-suited for comprehensive equipment testing requirements. With a focus on accommodating rigorous testing environments, it offers invaluable support to technical professionals in need of precise performance assessment.
Most popular related searches
water engineering
water containment system
water containment

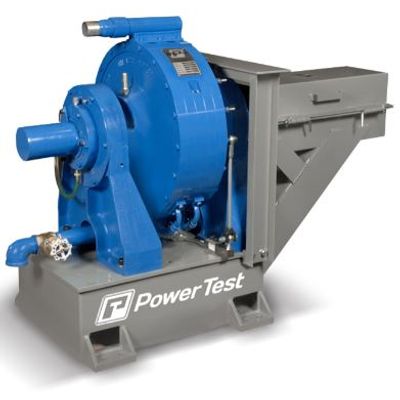

The PTX engine dynamometer complete water brake system contains everything required to perform reliable engine certification testing for on-highway, military, and construction applications. Each system delivers you the best overall value on your investment and is ready to go to work on a wide range of equipment. At the heart of each system is a Power Test W-HS Series (formerly 50X-Series) complete water brake engine dynamometer, known throughout the industry for long-term proven reliability and value. Supplied with engine mounting, connection, and cooling accessories, this comprehensive dyno system will make your testing easy.

  • Available in multiple horsepower configurations
  • Speeds up to 6,000 RPM
  • Up to 3,743 ft.-lbs. of torque
  • Pre-configured with the correct complement of accessories and PowerNet LT data acquisition and control
  • Provide equal, bi-directional loading capabilities
  • Through-shaft design allows either end of the dynamometer to be driven and for dyno mounted starting systems to be used.
  • Easily accessible seals and bearings allow for simple technical service without the need for dynamometer removal or specialty tools.
  • Engine cart provides a rapid and efficient method of engine placement removing the need for screw jacks and load binders.
  • The ability to test a wide range of engine displacements on the same dynamometer.
  • Through-shaft design allows either end of the dynamometer to be driven and to accept additional dynamometers in tandem plus a variety of accessories including starting systems.
  • Equal absorption capabilities in either direction of rotation.
