CryoblasterModel ATX25 -Powerful Fully Pneumatic Dry Ice Blaster for Industries

SHARE

Thanks to its new internal compressed air supply (1-inch diameter), the aggressiveness of the ATX25 is suitable for industries in need of fully pneumatic equipment with a high power of descaling.

Most popular related searches

ATX25

  • 100% Pneumatic design (no electricity needed)
  • Equipped in series with a pressure regulator (Festo®) : the ATX25 allows to work in pressures of 43 to 218 psi (3 to 15 bar)* : cleaning of the delicate surfaces to the surfaces heavily soiled,
  • Equipped with a dry Ice consumption regulator : from 0 to 65 kg/h

The ATX25 allows to carry out all the services achievable in dry ice cleaning.

*: 85% of applications in dry ice cleaning are carried out up to a pressure of  100 psi (7 bar)

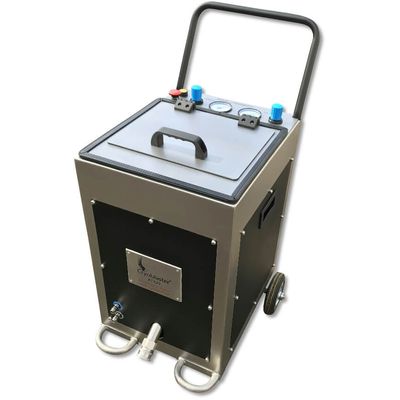

**: photo of ATX 25 pneumatic + handles front (cost: € 9.150,00 without VAT & delivery)

ATX25 : also available in electro-pneumatic version, click here: ATX25-E

Examples of applications

Cleaning of food processing and production equipment – cleaning assembly lines, including welding robots and other equipment – production equipment – automotive parts – moulds aluminium smelter by gravity – paint booths – Ventilation systems – moulds aluminium smelter by injection – meat processing plants – moulds rubber and plastics – rubber polymerization equipment – rotary OFFSET Cleaning – bottling industry – Electronics – Pharmaceutical industry – packaging equipment – mould cleaning – post fire cleaning – historical restoration: monument-hard wood stripping – automotive cleaning (engine and chassis) – Graffiti removal – cleaning Asphalt and concrete on TP machines – cleaning barrels of wine – cleaning of electrical cabinets and power and power generation equipment, including transformers, substations, wind turbines and off – voltage generators – Stripping anti-treading paint on boat hulls, etc

  • Dimensions : Long 410/Width 400/High 1100 mm
  • Weight : 67 kg (75 kg with gun and hose)
  • Working pressures :  43 to 218 psi (3 to 15 bar)
  • Ice consumption : 0 to 143 lb/h (0 to 65 kg/h)
  • Pressure regulator : included
  • Dry ice consumption regulator : included
  • Tank Capacity: 44 lb (20 kg)
  • Anti-static blasting hose * :  16.4 ft (5 m), 3/4 “
  • Engine : 100% pneumatic
  • Chassis/tank : Stainless steel 304
  • Electric Power : no
  • Power supply : no
  • WARRANTY : 12 MONTHS

Included : Gun, blast hose 16.4 ft (5 meters) 3/4″, nozzle B. 105, anti-lash collar, operating instructions, emergency stop button, pressure regulator, dry ice consumption regulator

*: Anti-static and anti-abrasion hose, specially designed and tested for cryogenic cleaning
