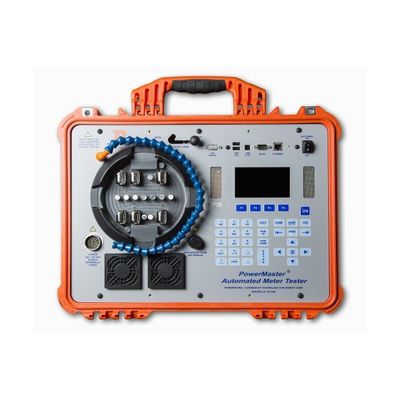

PowerMaster - Model 4 Series -Automated ANSI Meter Tester
The PowerMaster 4 Series Automated ANSI Meter Tester boasts many features that make it the most functional, versatile, and user-friendly meter tester on the market today. It is a closed-link meter testing solution that sources current up to 30A or 50A (depending on model) and operates on all voltages up to 530V with no switch changes required. Our automatic meter testing equipment also facilitates testing of most ANSI socket-based meters using our newly-engineered universal zero insertion force meter socket.
All this functionality comes in a field-rugged case yet is still the lightest product in its class by a wide margin. With models featuring internal reference standards of 0.04% accuracy, there is a 4 Series Automated Meter Tester available to fit virtually any need, all with a 2-year warranty.
Contact our sales team today to find out more about our automatic meter testing equipment:
- Our Built-In Current Source
- Universal Zero Insertion Force Meter Socket
- Testing On-Site, in the Truck, or in the Lab
Internal Reference Standard
- 0.04% Accuracy Classes
- 30 Amp and 50 Amp Models
- Universal Zero Insertion Force Meter Socket
- Wh, VARh, VAh Testing Modes
- Forward and Reverse Energy Flow Testing
- Demand Testing
- Individual Element Testing
- Creep Test
- Calibration Verification
- Under 30 Pounds
Direct Inputs
- AC Voltage: 100 to 530V
- System Power: 3 Pin Multi Connector
Current Source
- AC Current: 0.1 to 30A or 50A
- Power Factor: -1.00 to 1.00
- Drive: 80VA Max
Measurements
- Parameters: Wh, VARh, VAh
- Accuracy: +/- 0.04%
Meter Socket
- Universal Zero Insertion Force
- All ANSI Meter Forms Except 7S and 24S
System Connectivity
- USB Device Ports: 1 (for link to computer)
- USB Master Ports: 2 (for link to peripherals)
- RS232 Port: 1
- Ethernet Port: 1
Other
- Display Resolution: 480 x 272, full color
- Display Size: 4.3 inches
- Operating Temperature: -20C to 50C (-4F to 122F)
- Storage Temperature: -30C to 60C (-22F to 140F)
- Humidity: 0 to 95% non-condensing
- Dimensions: 19.8 in x 15.8 in x 7.4 in
- Weight: 29.0 lbs (13.2 kg)
Warranty : 2 Years
- Customer load meter testing
- Phantom load meter testing
- CT burden and ratio testing
- CT demagnetization
- PT ratio testing
- Transducer testing
- Optional Three Phase Current & Voltage Source
- Demand Testing (with End-To-End Testing)
- Three-Phase CT Testing
- Three-Phase PT Testing
- CT “Dead Site” Testing
