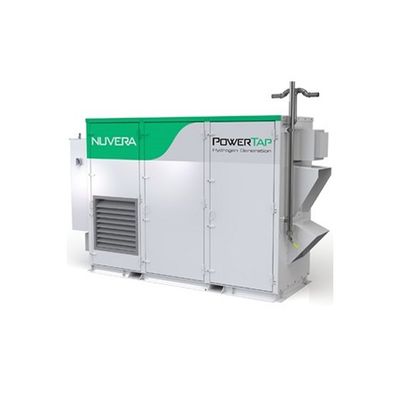

PowerTap - Model PTG-50 -Onsite Industrial Hydrogen Generator
PowerTap generates hydrogen on-site. It converts natural gas and city water into high-purity hydrogen directly at the point of use. Eliminate the cost and complication of delivered hydrogen and easily secure your own dedicated hydrogen supply. PowerTap uses one of the smallest footprints in hydrogen generation to provide a highly economical hydrogen supply option, available within minimal lead times.
GENERAL CHARACTERISTICS
- Type : On-site steam methane reformer
- Dimensions : 4.60 m (l) x 1.50 m (w) x 2.75 m (h)
- 15.1 ft(l) x 4.9 ft(w) x 9.0 ft(h)
- Weight : 6,350 kg (14,000 lbs)
HYDROGEN OUTPUT
- Production Rate : 50 kg/day (25 Nm2/h, 865 scfh)
- Purity : 99.995% or greater (configurable)
- Pressure : 10 bar (150 psig)
Connection Requirements
- Natural Gas : 1.5" NPT @ 7-14" WC, 600 scfh max (386 scfh NOM)
- 1.5" NPT @ 17.2-34.5 mbar W.C., 16.9 Nm3/h (10.9 m3/h
- Water : 0.5” compression at 8 gpm (60 psig)
- Electrical : 480 VAC, 100 A, 3-phase
- Compressed Air : None
OPERATION
- Temperature : -20°C to 45°C (-4°F to 113°F)
- Lifetime Target : 80,000 hours (10 years)
- Electrical Consumption/kg Hydrogen : 4.5 kWh at 20°C (68°F)
- Water Consumption/kg Hydrogen : 46.9 l (12.4 gallons)
- Natural Gas Consumption/kg Hydrogen : 56.3 kWh (0.19 MMBTU)
Cost Effective
An economical hydrogen supply solution compared to other supply alternatives.
Easy implementation
Minimal lead times. Plus, less hydrogen stored on-site means easier permitting.
Compact and scalable
Advanced technology enables a reduced footprint compared to alternatives. Turndown capabilities and component modularity allow for load cycle flexibility.
Low Carbon Emissions
On-site steam methane reformers reduce emissions by approximately 33% against delivered hydrogen according to Argonne National Laboratory.
- PowerTap is a proven technology
- PowerTap is one of the smallest most efficient SMR
- PowerTap previous owners / investors (Hess Oil, Renault, and others) invested millions of dollars in R&D
- Manufacture Hydrogen Fuel On- Site
- PowerTap’s is modular with a small footprint
- PowerTap uses Steam Methane Reforming (SMR) vs Electrolysis - More Efficient Energy / Lower Costs
- PowerTap allows for Low-Cost Production - $2-$3 per kg vs $6 per kg.
- PowerTap’s technology runs on natural gas, water and electricity - All items found at existing fueling stations
- PowerTap’s technology will bring your fueling station “first to market”
